Rotary Attachment for XPJ-661UF
Regular price
$2,772.00
Unit price
/
Unavailable
Description
Description
Rotary Printing Option for the XpertJet 661UF
Mutoh Rotary Attachment for XpertJet 661UF

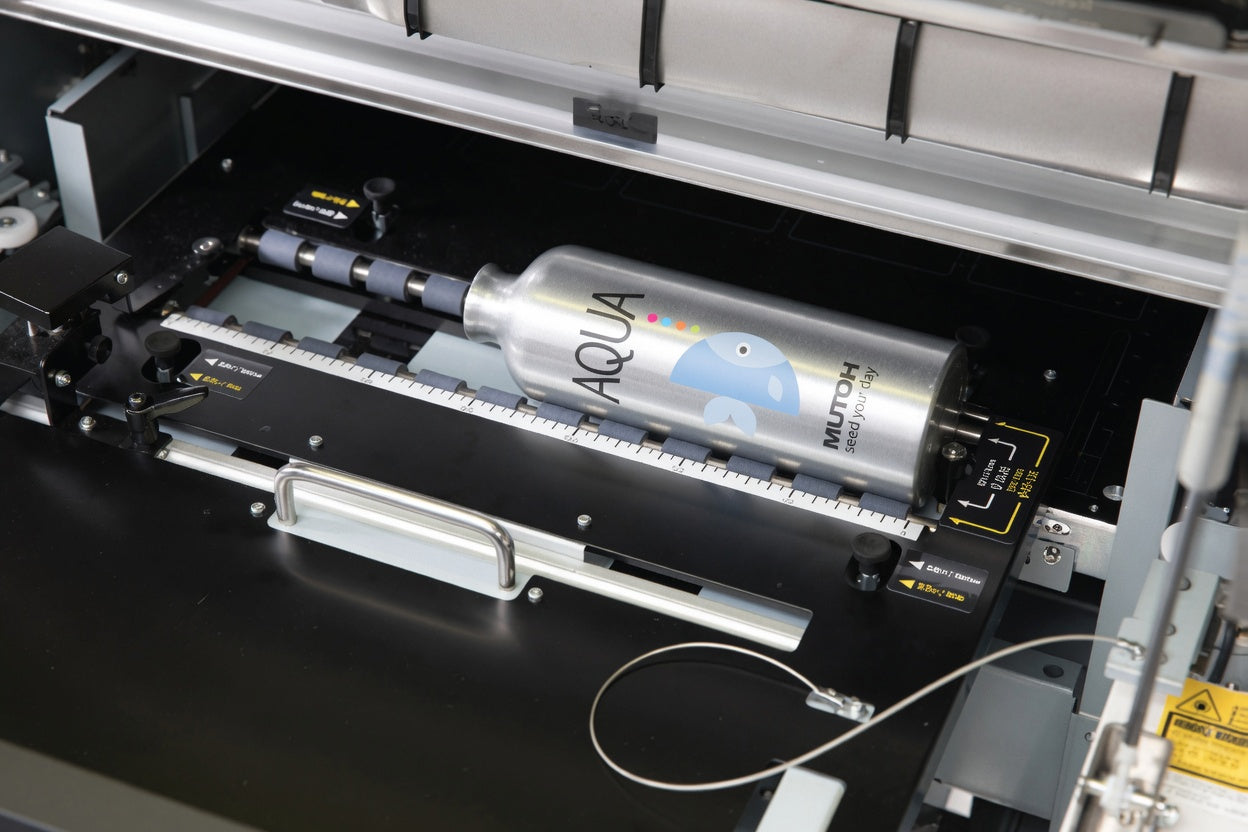

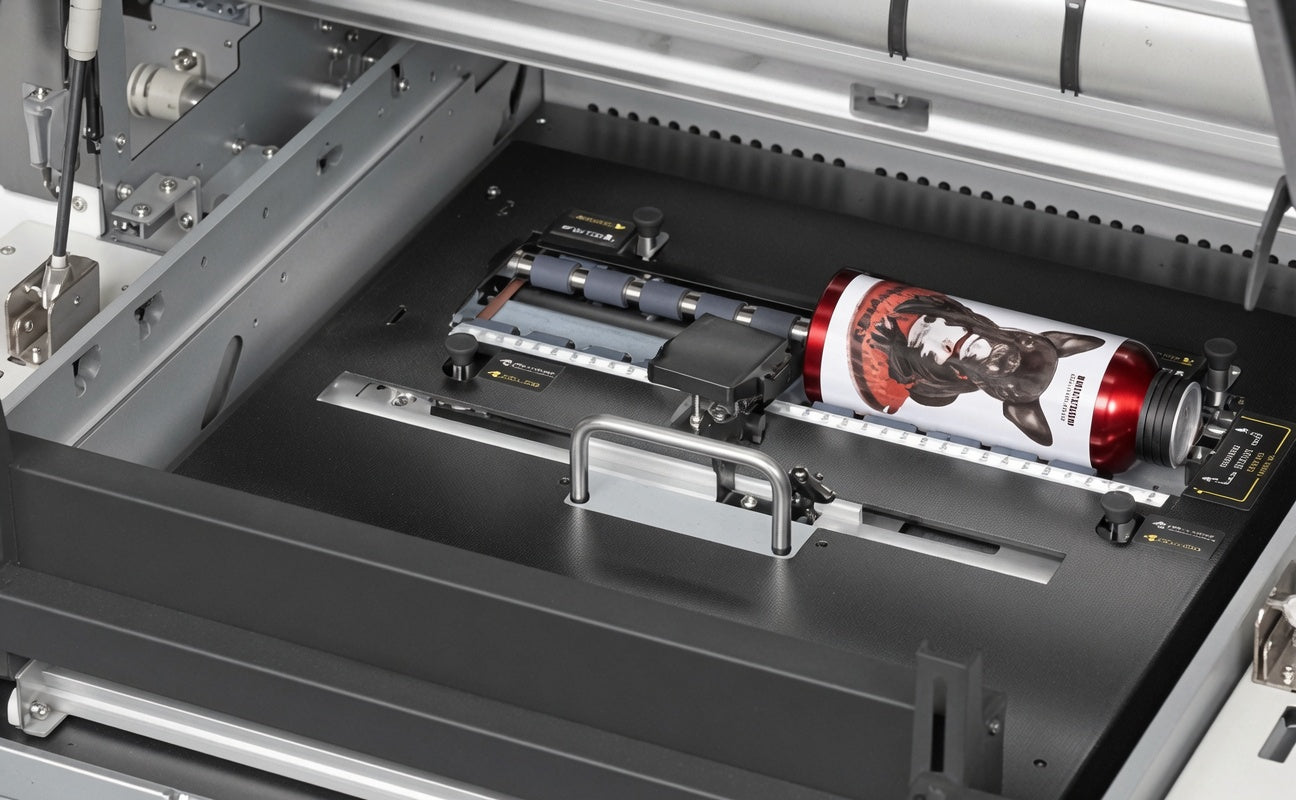

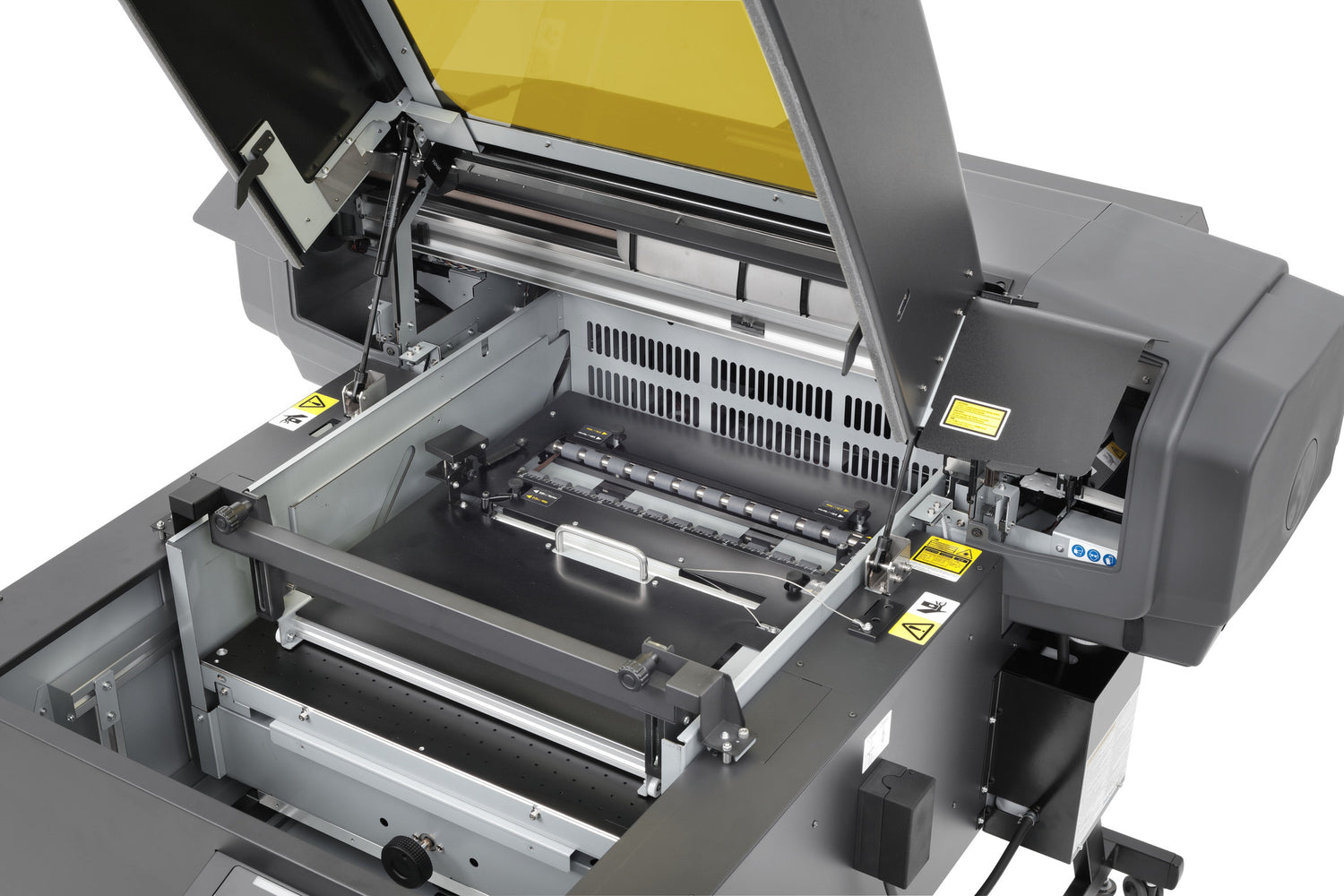

Your 661UF already prints flat goods beautifully. This attachment lets it print round ones. Drop the rotary unit into the bed, load a bottle or tumbler between the rollers, and the printer turns the object under the carriage while it prints, giving you full 360 degree coverage on cylindrical items.
Mutoh built it specifically for the XpertJet 661UF, so setup runs off a wizard already in the printer firmware and job prep happens in the driver software you use every day. Nothing new to learn from scratch.
At a Glance
| ✓ Full 360 degree printing on cylinders | ✓ Guided setup wizard in the printer |
| ✓ Objects from 1.18" to 4.72" diameter | ✓ Works in the standard driver software |
| ✓ Narrow and wide diameter ranges | ✓ Positioning ruler for lining up objects |
| ✓ 720 x 1080 dpi print mode | ✓ Thumbscrew diameter adjustment |
| ✓ Carrying handle, 12.3 lb unit | ✓ Object position retainer built in |
How the Rotary Option Works
A flatbed prints one face at a time. Put a water bottle on it and you get a panel of artwork on whichever side happens to be up. The rotary attachment changes that geometry. Its rollers hold the object and turn it in step with the carriage head shuttle, so artwork wraps continuously around the circumference instead of stopping at the edge of a flat pass.
Because the object is being driven rather than dragged, the rotation stays synchronized with the print, which is what keeps a wrapped design from stretching or seaming as it comes back around to where it started.
Key Features
Setup by Wizard, Not by Trial and Error
The setup routine lives in the XPJ-661UF firmware, so the printer walks you through loading and configuring the attachment. Job preparation is handled in the standard driver software, where jobs can be positioned and scaled according to the diameter and position of the object you are printing.
Two Diameter Ranges, Adjusted by Thumbscrew
The attachment covers a narrow range of 1.18" to 3.14" and a wide range of 2.36" to 4.72", which together span everything from a slim tumbler to a large growler. Diameter changes are made with thumbscrew adjusters rather than tools, so switching between object sizes is quick.
A Ruler for Repeatable Placement
A ruler runs alongside the object to help you position one item or line up several in a row. Paired with the built-in retainer that keeps an object from wandering mid job, it makes placement something you can repeat rather than eyeball.
In and Out Without a Production Stop
The unit weighs 12.3 lb and has a carrying handle, so one person can load it or lift it back out when the bed is needed for flat work. A print table is included that lets you run a nozzle check with the rotary accessory still mounted.
What You Can Print On
Mutoh points to prototypes, one-off designs, and high quality multi layer prints across items like these:
- Bottles and drinkware
- Decorative candles
- Stainless steel and aluminum containers
- Cardboard rolls and tubes
Mutoh specifies cylindrical objects with a smooth surface and even weight distribution. Textured, tapered, or off balance items fall outside what the attachment is rated for, so it is worth testing an unusual blank before committing to a run of them.
Technical Specifications
Features and Included Accessories
|
Features
|
Accessories Included
|
Before You Order
- This is an accessory, not a printer. It was developed specifically for the Mutoh XpertJet 661UF and requires that machine to operate. It is not a fit for the 461UF or other models.
- Check your blanks against the diameter and weight limits. Objects need to fall between 1.18" and 4.72" in diameter and stay at or under 2.2 lb.
- Room conditions matter. Mutoh rates the attachment for 72° to 86°F at 40 to 60 percent relative humidity.
- This item ships directly from Mutoh. Reach out if you need a delivery estimate before ordering.
Buying It From ColDesi
ColDesi has partnered with Mutoh since the XpertJet line came to the US market, and we sell, train on, and support these printers rather than just shipping them. If you are weighing whether the rotary option fits the work you are trying to win, call and talk it through with someone who runs these machines.
Frequently Asked Questions
Which printer does this work with?
The Mutoh XpertJet 661UF, also listed as the XPJ-661UF. Mutoh developed the attachment specifically for that machine, and the printer is sold separately.
What size objects will it hold?
Anything cylindrical from 1.18" to 4.72" in diameter, weighing up to 2.2 lb. There are two ranges, a narrow setting from 1.18" to 3.14" and a wide setting from 2.36" to 4.72".
Can it print all the way around an object?
Yes. Print circumference coverage runs from 0 to 360 degrees, so you can wrap a design completely around the object or print only a portion of it.
Do I need different software to run it?
No. Setup is guided by a wizard built into the printer firmware, and jobs are prepared in the standard driver software, where they can be positioned and scaled to the object's diameter.
Is it hard to swap in and out?
The unit weighs 12.3 lb and has a carrying handle for loading and unloading. It also comes with a print table so you can run a nozzle check without removing the attachment.
What can I actually sell with it?
Mutoh cites bottles, decorative candles, stainless steel and aluminum containers, and cardboard rolls, along with prototypes, one-off pieces, and multi layer prints.
Add Cylindrical Printing to Your 661UF
Drinkware, candles, and containers are steady sellers, and this is the piece that opens them up on a printer you already own. Questions about fit or lead time, give us a call.
