SKU: DTF-24H2

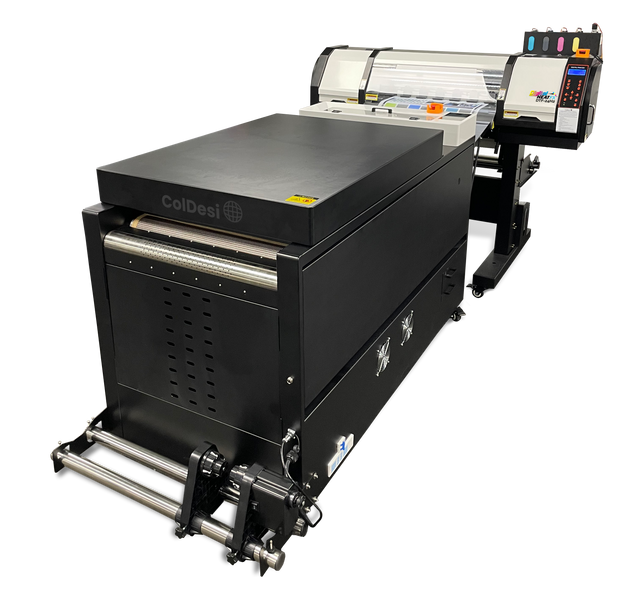

Direct-to-Film 24H2 Transfer Printer

$18,995.00

Product videos

Description

Taking the fast fashion on demand market by storm, the Direct-to-Film 24H2 transfer printer has a whopping machine output that is up to FIVE TIMES faster than DTG machines which cost thousands of dollars more.

The Raw Machine Output (RMO) on the DTF is what makes this new technology so revolutionary.

You can produce brilliant full-color prints:

On Virtually Any Garment
In Virtually Any Placement
Around 10 Seconds Press Time
Through dozens of wash cycles

How does a DTF Printer work?

The DTF-24H2 produces brilliant digital transfer sheets, handling everything from single color shirt labels to left chest logos to full-size prints. The DTF printer uses PET transfer film which is translucent so you can see the design underneath the film when you later heat-press it onto the garment.

The PET film has a thickness of around 0.75mm which allows for better transfer characteristics. The films used with the DTF-24H2 are both roll-fed and designed for a cold peel.

The powder adhesive coating is what gives DTF transfers their signature soft touch because it's moisture-seeking. It draws itself into the ink of the print and chemically bonds to form a strong permanent adhesive that sticks extremely strong to both cotton and polyester fibers.

What can you print with the DTF-24H2?

DTF Works With All Kinds of Garments and Fabrics:

T-Shirts
Polos
Sweatshirts
Backpacks
Aprons
Flags
Sports Uniforms
Company Dress Shirts
Combed Cotton
Ring Spun Cotton
Organic Cotton
Polyesters
Blended Fabrics
Poly-Cottons
Tri-Blends
Polyester-Spandex

**Our OEKO-TEX® ECO PASSPORT Certified DigitalHeat FX DTF Inks help you comply with global safety regulations and supply chain requirements.

What should you purchase with your printer?

Heat Press Machine - You will want a 16" x 20" sized heat press. Our top four recommendations are:

ColDesiPRESS C20 Heat Press - Top Pick
Hotronix Fusion Professional Package - Best Deal
Hotronix Fusion Heat Press - Popular
Hotronix Auto Clam - Lowest Price

Can you use another brand/style of heat press you already own? Yes, just be careful of one very important thing: you need to have even heat and pressure across the entire platen.

Many 'knock off' heat presses save money in production by having a reduction in heating elements and limited quality control. We recommend the four above due to customers having the greatest success.

Finishing Sheets - Use these to add the final finish to your t-shirt. Once the print is on the garment, press one last time with a finishing sheet to get a nice finish that looks great on a shirt. (This is another product we have tested over and over again to find the perfect one.)

Machine Specifications:

2 Head Printer – 29″ x 67.5″ – 330 lbs – powered by directly plugging into shaker/dryer
- Printer only: 29" x 67.5"
- Shaker/Dryer: 110.5" x 33"
- Combined: 139.5" x 67.5"
Shaker/Dryer – 110.5″ x 33″ (Rear Dryer Assembly 2″ x 5″) – 24POW 847 lbs  220V, 30 amps (powers printer, shaker/dryer, and extractor)
Integrated Fume Extractor – No external fume extractor needed
Pre-Heat Ramp (Pre-curing Zone)
Environmental Conditions – Your printer should only be used in a dust-free, clean environment. Humidity and temperature need to be at moderate levels for optimal printing. Manufacturer recommendations for optimal operational temperature & humidity are as follows: 60°F – 80°F and 50% – 70% relative humidity.
Delivery – The LTL delivery is to your receiving department, loading dock, or driveway. Uncrating and self-installation are the responsibility of the receiver. Both the printer and shaker/dryer are on casters and can easily be moved once removed from crates. The printer is 330 lbs. assembled and the shaker/dryer is 562 lbs POW (Optional POWR 635 lbs). Will require 3-4 people to lift over any steps or move safely
Software – To operate DigitalHeat FX Print Optimizer with the DTF-24H2 printer, a dedicated Windows 10 PC (or greater) with an Ethernet connection is required. For best results, the PC should have a minimum of 32GB RAM and a 500GB solid-state hard drive. Due to the printer not being networkable, for networking or internet access, WiFi capabilities are necessary.
1 Year Warranty 6 Months Print Head

Site Readiness: Click Here

Specifications

Shaker Dryer

POW/POWR
Ink Delivery System

5-Color Bulk Ink System
Water Based Textile Ink
500 ml Bottles
OEKO-TEX ECO PASSPORT-Certified Inks
Machine Dimensions

Printer: 29" x 67.5" (73.66 x 171.45 cm)
Dryer: 94.5" x 36" (240.03 x 91.44 cm)
Combined: 123.5"" x 67.5"" (313.69 x 171.45 cm)
Maintenance Features
- Auto Supply Ink System
- White Ink Management System
- Anti-Collision System
- Film Print Vacuum System
- In-Line Heater Pre/Post (Post Default)
- LCD Touch Screen Control Menu
- Auto Belt Feed with Front/Back Vacuum
- Powder DAM/Cradle
- Integrated Fume Extractor
- Powder Recirculatory System
- Laser Sync Speed Sensors
Media Transmission

Automatic Film Take Up
Operating Conditions

Recommended Workspace: 195.5" x 139.5" (496.57 x 354.33 cm)
Operating Temperature: 60° - 80°F (15.6 - 26.7°C)
Operating Humidity: 50% - 70%
Operating System Compatibility

Windows PC w/Quad Core Processor - 32GB RAM and 500GB SSD - Transmission Interface: Ethernet
Print Head Technology

Epson i3200 Print Heads Piezoelectric Inkjet Variable DOD Using VSD
Print Media

DigitalHeat FX - PET Transfer Film
24" x 328' (60 cm x 100 m)
Print Resolution

720 x 1800 DPI, 6-Pass
720 x 2400 DPI, 8-Pass
720 x 3600 DPI, 12-Pass
Up to 45-55 LF/hr, (14 m/hr), 100 (8" x 10") transfers per hour
Shipping Dimensions

Printer: 78"x 48"x 68" / 8.12 x 121.92 x 172.72 cm (W x D x H)
Dryer: 46"x 90"x 56" / 6.84 x 228.6 x 142.24 cm (W x D x H)
Support

7 Day a Week Equipment Support
Nationwide DTF Certified Technicians
Training

Online-Self Paced Training
One-on-One Training Available
Voltage

Printer: 110V/2A
Combined: 220V/30A
Warranty

2-Year Warranty / 1-Year Print Head Warranty
Weight

Printer: 330 lbs / 145 kg
Dryer: POW 562 lbs / 255 kg (POWR 635 lbs / 288 kg)
Printer Shipping Weight: 625 lbs / 284 kg
Dryer Shipping Weight: 915 lbs / 415 kg
What's Included

Integrated Fume Extractor
Startup Consumables Kit
Maintenance Kit
Print Optimizer RIP Software
Configuration

CMYK + White
Heads

2
Paper Size

22.5in.
