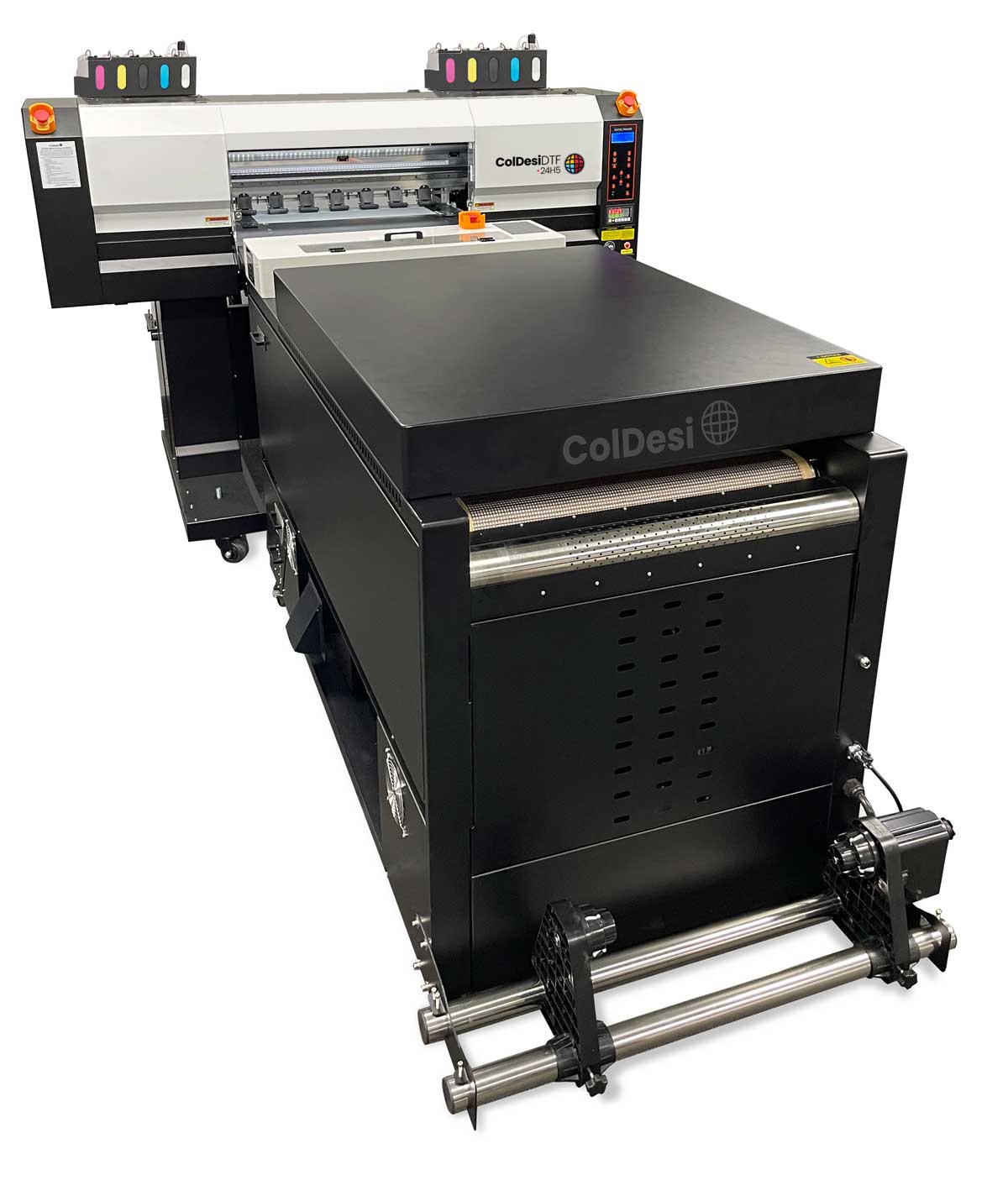

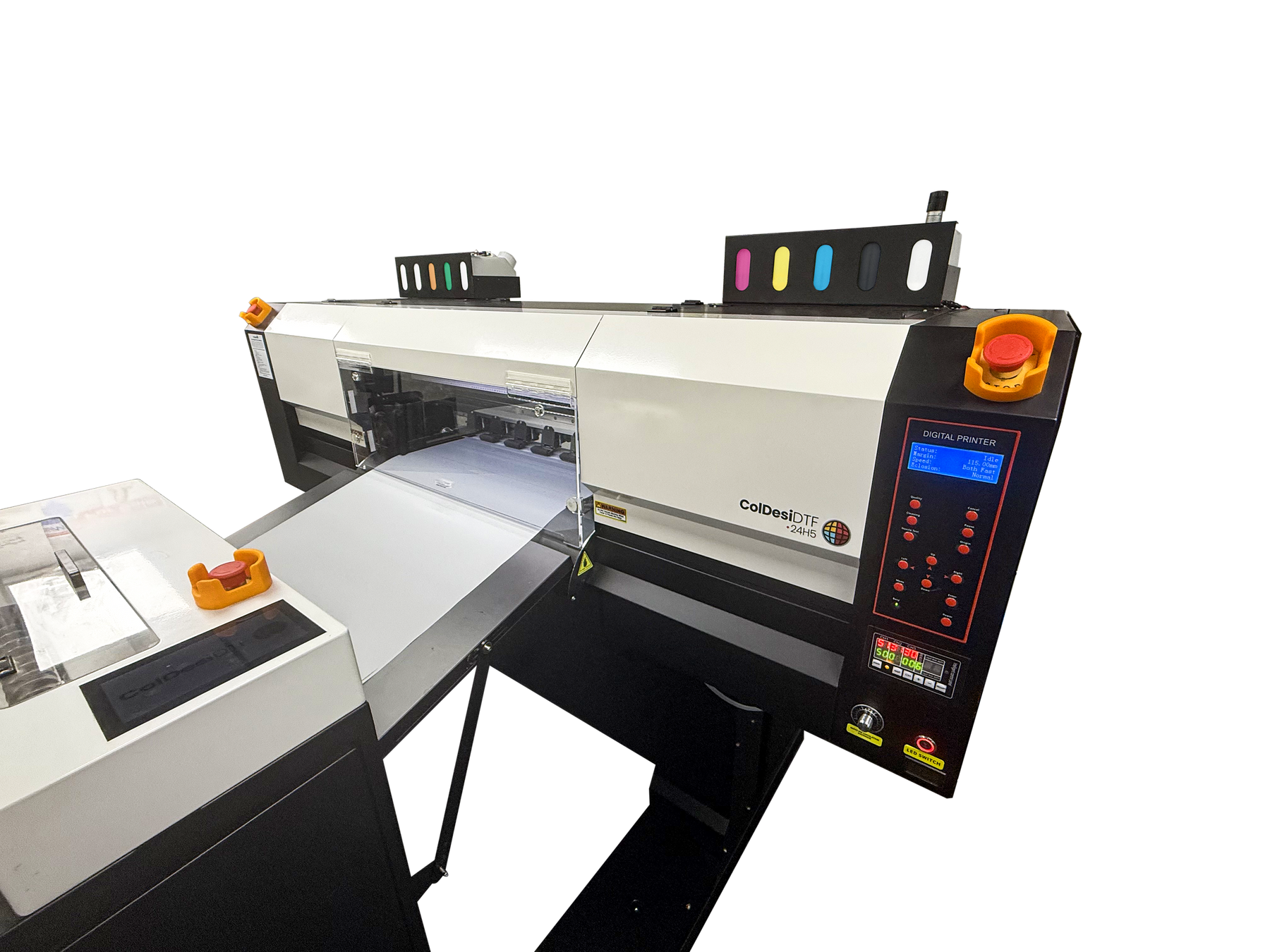

DTF 24H5 Transfer Printer - Expanded Colors
Compact Footprint Fits in small shops
Commercial Quality Built to produce
USA-Based Support 7 days a week
Easy to Use Train in a day

Direct-to-Film 24H5 Transfer Printer - Expanded Colors

Direct-to-Film Printer

Professional results. Compact size. Built for growing businesses.

  • Produces up to 300 8" x 10" expanded-color transfers per hour
  • Five Epson i3200 printheads deliver a 22.5-inch maximum print width
  • CMYKOG + White adds Orange and Green for a broader color gamut
  • Expanded gamut improves saturation, gradients and brand-color accuracy
  • POWR shaker/dryer includes fume extraction and powder recirculation
  • Includes Print Optimizer software, training and 7-day equipment support
In Stock & Ready to Ship
Free Shipping in the USA
$31,99500
Choose your deal:
0% Financing* Easy monthly payments
$549/mo* at 0% Financing*
or
Instant Rebate Limited-time alternative offer
$4,000 Instant Rebate
Get custom quote Watch demo

Print vibrant. Print everywhere.

See the DTF output quality for yourself

Explore vibrant transfers, apparel applications, fine details, and production-ready results created with this DTF equipment.

Common questions

How do I know which ColDesi DTF printer is right for my business?

Each ColDesi DTF printer is designed for a different combination of workspace, production needs, and growth goals. A ColDesi equipment specialist can learn about your business, help you compare the available systems, and guide you toward the machine that best fits your operation.

Can I see the DTF printer in action before I buy?

Yes. ColDesi offers opportunities to see its equipment through in-person showroom demonstrations and live virtual demonstrations. This allows you to see the workflow, ask questions, and better understand the equipment before making a decision.

Is training included with my ColDesi DTF printer?

Training and support are listed across ColDesi’s current DTF printer lineup. Most ColDesi equipment purchases include training, although the exact training format and package eligibility may vary depending on the machine and configuration selected.

What does ColDesi’s DTF printer training cover?

Training is designed to help you understand equipment setup, operation, software, routine maintenance, and the overall DTF production process. Depending on the equipment, training resources may include self-paced courses, videos, written lessons, downloadable materials, and live online instruction.

What support is available after the printer is installed?

ColDesi provides ongoing access to training resources, instructional content, and a technical-support ticketing system. When an answer cannot be found in the training or support library, customers can submit a support request for assistance from the technical-support team; ColDesi’s current DTF lineup also advertises nationwide technicians.

Can someone who is new to DTF printing learn to use the equipment?

Yes. ColDesi’s onboarding and training resources provide a structured path for new operators to learn the equipment and production workflow. The training remains available as a reference, allowing operators and additional team members to review important procedures when needed.

What software is used to operate a ColDesi DTF printer?

ColDesi’s current DTF printer lineup lists Print Optimizer Software – DTF Edition for preparing and managing print production. The exact software version, computer requirements, and included features should be confirmed for the selected printer and package.

Does a DTF printer require regular maintenance?

Yes. Routine maintenance is an important part of operating any DTF printer and helps support reliable production and consistent output. ColDesi’s DTF training covers equipment operation and maintenance, while the precise procedures and schedule are provided for the individual machine.

What should I prepare before my DTF printer arrives?

You should plan for an appropriate operating area, adequate access for delivery, the required electrical connections, a compatible computer, and any ventilation or environmental needs associated with the selected system. Because printer dimensions and configurations vary considerably, the exact requirements should be verified during the purchasing and onboarding process.

Are financing options available for ColDesi DTF printers?

Financing opportunities are available for qualifying customers. Available terms, payments, down-payment requirements, and approval conditions depend on the equipment package and the financing provider.

Description
Five Head Roll Fed DTF System with Expanded Color

ColDesi 24H5 DTF Printer with Expanded Color

The ColDesi 24H5 expanded color package combines five Epson i3200 printheads with CMYKOG plus white output. It prints up to 22.5 inches wide and is published at up to 145 linear feet per hour in expanded color mode.

The package pairs the printer with a 24 inch powder shaker and dryer, integrated fume extraction, Print Optimizer V2 software, and documented startup supplies for a complete roll fed DTF production line.

At a Glance
✓  Five Epson i3200 printheads ✓  Expanded CMYKOG plus white configuration
✓  22.5 inch maximum print width ✓  Up to 145 linear feet per hour
✓  Published estimate of 300 8" x 10" transfers per hour ✓  Automatic film tension system
✓  24 inch G Series transfer film ✓  Integrated fume extraction
✓  Print Optimizer V2 keyless software ✓  One year warranty, six months on printheads

Expanded Color for Production DTF

This 24H5 configuration adds dedicated orange and green channels to CMYK and white. ColDesi publishes the expanded setup for work that calls for a broader color range, including detailed artwork, brand palettes, and smoother tonal transitions.

The printer feeds film into the matched shaker and dryer so printing, powder application, and curing stay in one line. It is still production equipment. Daily care, correct humidity, and a properly prepared site are part of keeping it ready to run.

Key Features

Five Epson i3200 Printheads

The 24H5 uses five Epson i3200 heads in a piezoelectric inkjet system. The expanded package is configured for CMYK, orange, green, and white output, with a published maximum print width of 22.5 inches.

Expanded CMYKOG Plus White

Orange and green add two dedicated color channels beyond standard CMYK. That gives Print Optimizer more color information to work with on artwork that needs added tonal range or closer handling of brand colors.

Automatic Film Control

An automatic dancer system manages film tension while the vacuum print system holds media through the print area. These documented controls are there to support steady film movement during longer runs.

Automated Wet Capping

The self cleaning system includes automated wet capping for printhead care and nozzle recovery. It reduces the amount of manual work involved in that maintenance step, but it does not replace the operating and maintenance procedures covered in training.

Matched Shaker and Dryer

The published package includes a 24 inch shaker and dryer with touchscreen controls, automatic belt feed, a weighted powder cradle, a preheat area, laser synchronization, and integrated fume extraction.

What Each Unit Brings

24H5 Printer
  • Automatic ink supply
  • White ink management
  • Printhead anti collision system
  • Vacuum film hold down
  • Inline pre and post heaters
  • Automated wet capping
  • Automatic dancer tension system
24 Inch Shaker and Dryer
  • LCD touchscreen menu
  • Automatic belt feed with front and back vacuum
  • Weighted powder dam and cradle
  • Integrated fume extractor
  • Preheat table and curing area
  • Laser sensor for belt control and powder release

What Comes With It

The published package list for the expanded color model includes:

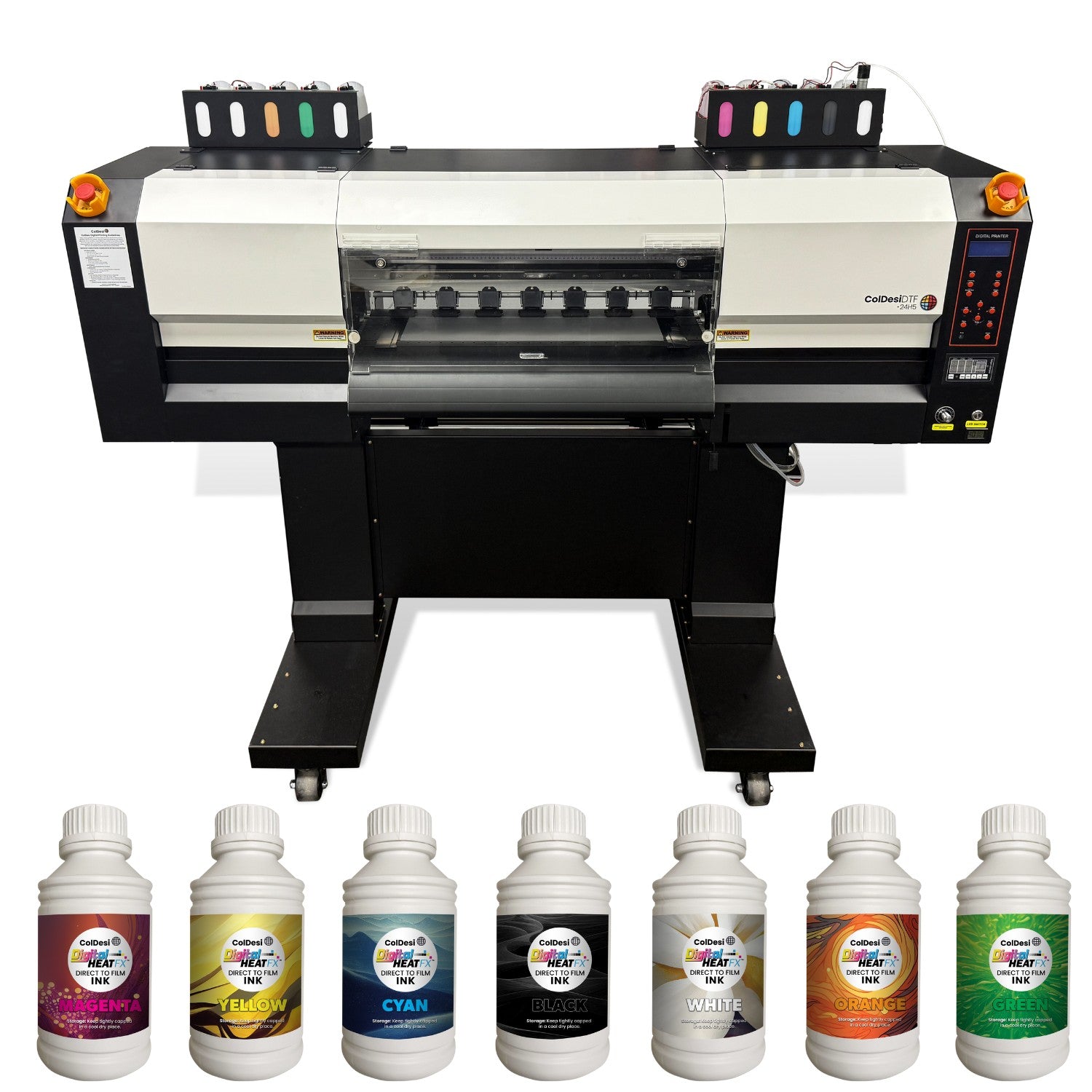

  • ColDesi 24H5 DTF printer in the expanded CMYKOG plus white configuration
  • 24 inch shaker and dryer with built in fume extraction
  • ColDesi DTF Print Optimizer V2 keyless software
  • 2 x DTF CMYKOG ink, 500 ml each
  • 4 x DTF white ink, 500 ml each
  • 8 x DTF adhesive powder, 1 lb each
  • 2 x rolls of G Series DTF film, 24" x 328'
  • Cleaning solutions and supplies
  • ClickWear membership license
  • Published blank apparel, supply, and graphics coupons
  • Online self paced training, with one on one training available
  • One year warranty, with six months on the printheads

Technical Specifications

Color Configuration Expanded CMYKOG plus white
Printheads 5 x Epson i3200
Printing Technology Piezoelectric inkjet
Print Method Variable drop on demand using VSD
Maximum Print Width 22.5" (57.15 cm)
Print Media ColDesi 24" G Series hot peel PET transfer film, 24" x 328' (60.96 cm x 100 m)
Media Transmission Automatic tension dancer system
Expanded Color Speed Up to 145 linear feet per hour (40 meters per hour)
Expanded Color Transfer Estimate 300 8" x 10" transfers per hour
Optional Standard Color Speed Up to 160 linear feet per hour (48 meters per hour)
Published Resolutions 720 x 1200 DPI at 4 pass; 360 x 3600 DPI at 6 pass
Ink Type ColDesi DTF OEKO-TEX® ECO PASSPORT certified pigmented water based textile ink
Ink Capacity 500 ml containers
Computer Connection USB
Included RIP Software ColDesi DTF Print Optimizer V2, keyless
Supported Operating System Dedicated Windows 10 PC or newer
Electrical Requirement 220V, 30A, single phase, L6 30R receptacle
Printer Dimensions 35.5" x 78"
Shaker and Dryer Assembly 115.5" x 35"
Combined Dimensions 151" x 78"
Printer Weight 560 lb assembled
Shaker and Dryer Weight 847 lb assembled
Warranty 1 year, 6 months on printheads
Support 7 day equipment support and nationwide DTF certified technicians
Training Online self paced training, one on one training available

Site and Setup

Delivery is to the receiving area. Uncrating and self installation are the receiver's responsibility. Both units are on casters after uncrating, but the published site sheet calls for three to four people when the equipment must be lifted over steps or moved safely.

Power
  • 220V, 30A, single phase
  • L6 30R twist lock receptacle
  • Printer plugs into the shaker and dryer
  • Shaker and dryer power the printer and take up reel
Weights and Handling
  • Printer: 560 lb assembled
  • Shaker and dryer: 847 lb assembled
  • Units roll on casters after uncrating
  • Plan for three to four people where lifting is required
Footprint and Clearance
  • Printer: 35.5" x 78"
  • Shaker and dryer assembly: 115.5" x 35"
  • Combined system: 151" x 78"
  • Minimum 36" service clearance, with 36" to 48" at the dryer side
Room and Computer
  • Clean, dust free operating area
  • 60°F to 80°F
  • 50 to 70 percent relative humidity
  • Dedicated Windows 10 or newer PC with USB
  • 32 GB RAM and 500 GB solid state drive recommended
Room conditions protect the printheads. The 24H5 site readiness sheet warns that incorrect temperature or humidity can dry printheads quickly. The printer has an integrated hygrometer to help you watch humidity near the control panel.

Review the full measurements, receptacle details, and access requirements in the 24H5 site readiness sheet before delivery.

Buying It From ColDesi

The published package includes Print Optimizer V2, startup consumables, maintenance supplies, online self paced training, and access to one on one training. ColDesi also publishes seven day equipment support, nationwide DTF certified technicians, and a one year warranty with six months on the printheads for this configuration.

Frequently Asked Questions

Which color configuration is included?
This listing is for expanded CMYKOG plus white. ColDesi also publishes a standard CMYK plus white configuration, so confirm the selected configuration before the order is finalized.
How fast is the expanded color configuration?
ColDesi publishes up to 145 linear feet per hour, or 40 meters per hour, in expanded color mode. The current product description also publishes an estimate of 300 8" x 10" transfers per hour.
Does it print a full 24 inches wide?
No. It runs 24 inch transfer film, but the published maximum print width is 22.5 inches.
Is the shaker and dryer included?
Yes. The published package includes a matched 24 inch shaker and dryer with integrated fume extraction. Confirm the exact dryer model and powder recirculation configuration on the final order.
What power and room conditions does it need?
The current 24H5 site sheet specifies 220V, 30A, single phase power with an L6 30R receptacle. Keep the room clean and dust free at 60°F to 80°F and 50 to 70 percent relative humidity.
What computer does it require?
Use a dedicated Windows 10 or newer PC with a USB connection. The site sheet recommends at least 32 GB RAM and a 500 GB solid state drive for Print Optimizer.
What materials can DTF transfers go on?
ColDesi publishes the 24H5 for cotton, polyester, poly cotton blends, tri blends, and polyester spandex blends, across products such as shirts, hoodies, polos, uniforms, aprons, backpacks, and flags.
What warranty is published for this package?
The ColDesi 24H5 product page publishes a one year equipment warranty and six months of printhead coverage. Confirm the final written warranty terms before purchase because another specification block publishes different coverage.
Is Expanded Color the Right 24H5 Configuration?

Talk with a ColDesi DTF specialist about your artwork, production targets, room, and electrical setup before ordering.

Call 877 793 3278
Specifications
Shaker Dryer
POW/POWR
Ink Delivery System
5-7 Color Bulk Ink System (SMART Cartridge Ink System)
Water Based Textile Ink
500 ml Bottles
OEKO-TEX ECO PASSPORT-Certified Inks
Machine Dimensions
Printer: 30" x 78" (76.2 x 198.12 cm)
Dryer: 94.5" x 36" (240.03 x 91.44 cm)
Combined: 124.5" x 78" (316.23 x 198.12 cm)
Maintenance Features
Auto Supply Ink System
White Ink Management System
Anti-Collision System
Film Print Vacuum System
In-Line Heater Pre/Post (Post Default)
Self-Cleaning Function (Automated Wet Capping)
LCD Touch Screen Control Menu
Auto Belt Feed with Front/Back Vacuum
Weighted Powder PAM/Cradle
Integrated Fume Extractor
Pre-Heat Table
Powder Recirculatory System
Laser Sync Sensor
Belt Control & Powder Release
Media Transmission
Automatic Tension System (Dancer System) and Film Take Up
Operating Conditions
Recommended Workspace: 196.5"x 150" (499.11 x 381 cm)
Operating Temperature: 60° - 80°F (15.6 - 26.7°C)
Operating Humidity: 50% - 70%
Operating System Compatibility
Windows PC w/Quad Core Processor - 32GB RAM and 500GB SSD - Transmission Interface: Ethernet
Print Head Technology
Epson i3200 Print Heads
Piezoelectric Inkjet
Variable DOD Using VSD
Print Media
DigitalHeat FX - PET Transfer Film
24" x 328' (60 cm x 100 m)
Print Resolution
720 x 1200 DPI, 4-Pass, 147.4 LF/hr (44.93 m/h)
360 x 3600 DPI, 6-Pass, 103.8 LF/hr (31.63 m/h)
Training
Online-Self Paced Training
One-on-One Training Available
7 Day a Week Equipment Support
Nationwide DTF Certified Technicians
Voltage
Combined: 240V/30A
Warranty
2-Year Warranty / 1-Year Print Head Warranty
Weight
Printer: 550 lbs / 245 kg
Dryer: POW 562 lbs / 255 kg (POWR 635 lbs / 288 kg)
Printer Shipping Weight: 750 lbs / 341 kg
Dryer Shipping Weight: 915 lbs / 415 kg
What's Included
Startup Consumables Kit
Maintenance Kit Print Optimizer RIP Software
Configuration
Standard: CMYK + White
Fluorescent: CMYK(FM)(FY) + White
Expanded: CMYKOG + White
Heads
5
Paper Size
22.5in.
See it in action

Watch this machine in action

See the speed, quality, and workflow before choosing the right machine for your business.

High speed. Premium results. Built for your business.
More ways to see it in action

Explore more product videos

Watch additional demonstrations, workflow examples, and product highlights before choosing the right equipment for your business.

Product video 1
Product video 2
Product video 3

Let’s find the right machine

Tell us a little about what you need and our team will follow up.

Are you already in business?

Ready to talk through the right setup?

Connect with a ColDesi product specialist for pricing, fit, and next steps.

Built for serious business growth

Use this section to translate features into business outcomes buyers actually care about.

Production confidence

Help buyers understand how the machine supports more reliable output and fewer headaches.

Business-ready speed

Show how the workflow helps shops move faster and serve more orders.

Profit-focused capability

Frame the machine around growth, margin, and in-house control.

Support that matters

Reinforce training, onboarding, and U.S.-based support as a conversion advantage.

Join the Conversation

Free Shipping & Ground Shipping available in USA only, not in AK or HI.
