ProSpangle 4-Head Spangle Transfer Machine
Regular price
$64,995.00
Unit price
/
Unavailable
Description
Description
4-Head Automatic Spangle Transfer Machine

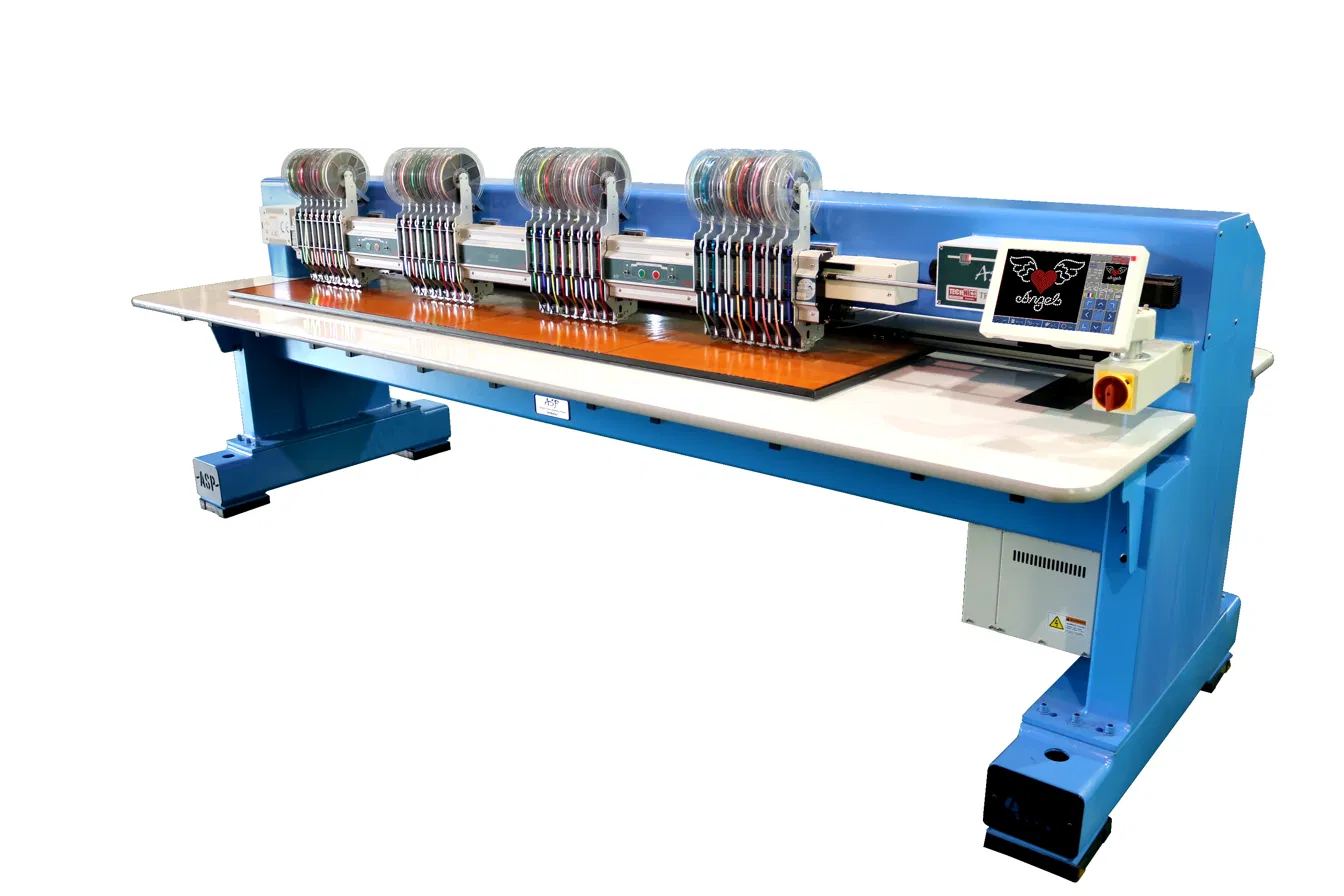

ProSpangle 4-Head Spangle Transfer Machine
The ProSpangle 4-Head is the production version of the spangle machine ColDesi decorators already know. Four heads work a 24 by 20 inch field at up to 1,000 spangles per minute each, and every head carries eight press units, so a single design can pull from eight spangle colors or sizes without a reel swap partway through.
This one is aimed at shops filling spangle orders daily. Contract decorators, manufacturers, and customization businesses that have run past what a single head can deliver.
At a Glance
| ✓ Four production heads | ✓ LCD touchscreen controls |
| ✓ 1,000 spangles per minute, per head | ✓ Spangles down to 0.8 mm |
| ✓ Eight press units on every head | ✓ Circle and square spangle shapes |
| ✓ 24" x 20" working area | ✓ Automatic used material collection |
| ✓ Holds 3,000 design files | ✓ Step-up transformer included |
Built for Shops Running Spangle Every Day
A spangle machine, also called a sequin transfer machine, makes heat press transfers out of spangles. Spangles are threadless sequins, solid discs with no hole punched through the middle, so a finished design reads as opaque, reflective color rather than a ring of dots. The catch has always been throughput. Once orders stack up, one head becomes the ceiling.
Four heads raise that ceiling. Each one places up to 1,000 spangles a minute across a working field of 24 by 20 inches, which is wider and taller than the single head ProSpangle covers. Placement runs automatically from the file you load, and spent material is collected as you go, so the table stays clear and the operator is not stopping to tidy between runs.
Key Features

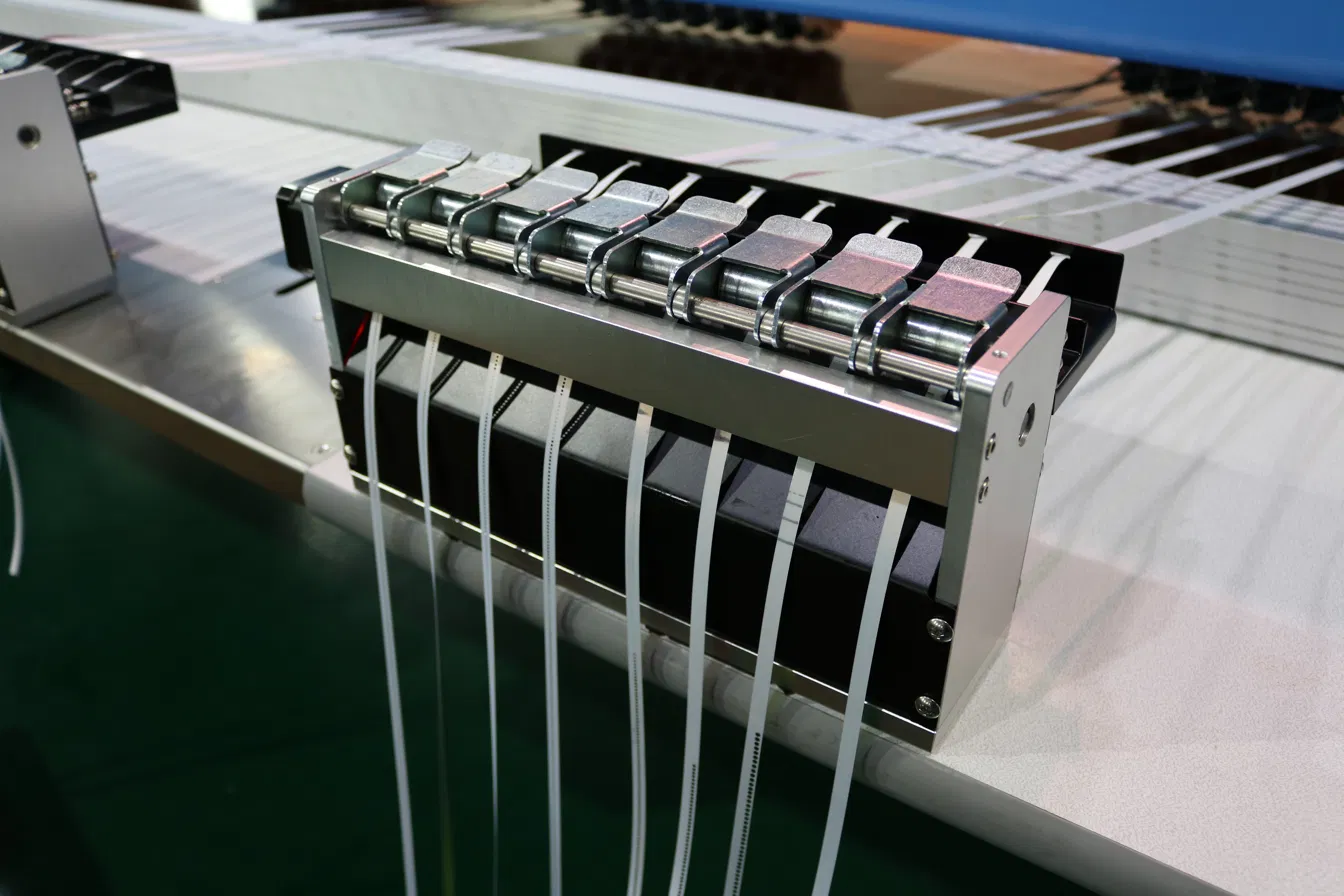

Eight Press Units on Every Head
Each of the four heads carries eight press units, which means one design can draw on eight spangle colors or sizes at once. Multi color artwork that would otherwise force a changeover partway through simply runs, and every changeover you skip is time back on the production schedule.
Detail Down to 0.8 mm
Circle spangles run from 0.8, 1.0, 1.2 and 1.5 mm on up through the 2 to 6 mm range, and square spangles are available in 3 and 4 mm. The small sizes are what let you hold fine lettering, tight logo detail, and intricate line work that larger spangles would flatten out.
LCD Touchscreen Controls
Setup, adjustments, and production monitoring all happen through the onboard touchscreen. The machine also holds 3,000 design files across banks of 100, so the jobs you run again and again can live on the machine rather than being loaded fresh for every reorder.
Used Material Collection Built In
Spent material is gathered automatically while production continues. It is a small thing on paper and a real one on a busy floor, because it keeps the work area clean and cuts down on the interruptions that eat into a shift.
Technical Specifications
What Comes With It
Every ProSpangle 4-Head is built to order and arrives ready to put to work:
- The ProSpangle 4-Head machine
- Starter kit and supplies
- Software
- Step-up transformer
- One day of online one-on-one training, plus access to the self-paced video library
- U.S. based support
- A two year parts and labor warranty
Space and Power
This is a full size production machine, so it is worth measuring before you order. It stands just over 11 feet wide and weighs more than 2,600 pounds, which puts it well past what two people can reposition on a whim.
|
Footprint and Weight
|
Electrical
|
Buying It From ColDesi
ColDesi has been putting ProSpangle machines into apparel shops for years, and spangle transfers are a category decorators came to through that line. The 4-Head comes with a starter kit and supplies, software, a step-up transformer, a day of one-on-one training with self-paced videos to fall back on, and U.S. based support once you are running. Machines are built to order, so reach out and we will walk through fit, timing, and pricing with you.
Frequently Asked Questions
How fast is the ProSpangle 4-Head?
Each head places up to 1,000 spangles per minute, and the machine has four of them working a 24 by 20 inch field.
How many colors can one design use?
Eight. Every head carries eight press units, so a single design can pull from eight spangle colors or sizes without a changeover partway through the run.
What spangle sizes and shapes does it run?
Circle spangles in 0.8, 1.0, 1.2 and 1.5 mm, plus the 2 to 6 mm range. Square spangles are available in 3 mm and 4 mm.
What power does it need?
It runs on 110V or 220V at 50 to 60 Hz. A step-up transformer is included, which is what lets the machine operate on standard 110V.
How much room does it take up?
The machine measures 137.7" wide by 51.9" deep by 49.2" tall and weighs 2,645.5 lb, so plan the floor space and the delivery path before it arrives.
How is it different from the single head ProSpangle?
Three ways that matter on a production floor. Four heads instead of one, eight colors or sizes per design instead of six, and a 24" x 20" working area rather than 13.5" x 17.5".
What training and support come with it?
One day of online one-on-one training, an on-demand library of self-paced videos, U.S. based support, and a two year parts and labor warranty.
Ready to Scale Up Your Spangle Production?
The ProSpangle 4-Head is built to order for shops running commercial spangle volume. Talk to a ColDesi bling specialist about pricing, financing, and what it takes to get one on your floor.
Get Your Custom Quote
Specifications
Specifications
-
Voltage110V or 220V
-
Weight2,645.5 lbs.
-
Electrical110V or 220V (50-60 Hz)
-
Configuration8 Colors/Sizes
-
Heads4
