Cross Cutter + Slitters + Unwind
4.7 ★★★★★ (38,000+ Reviews)

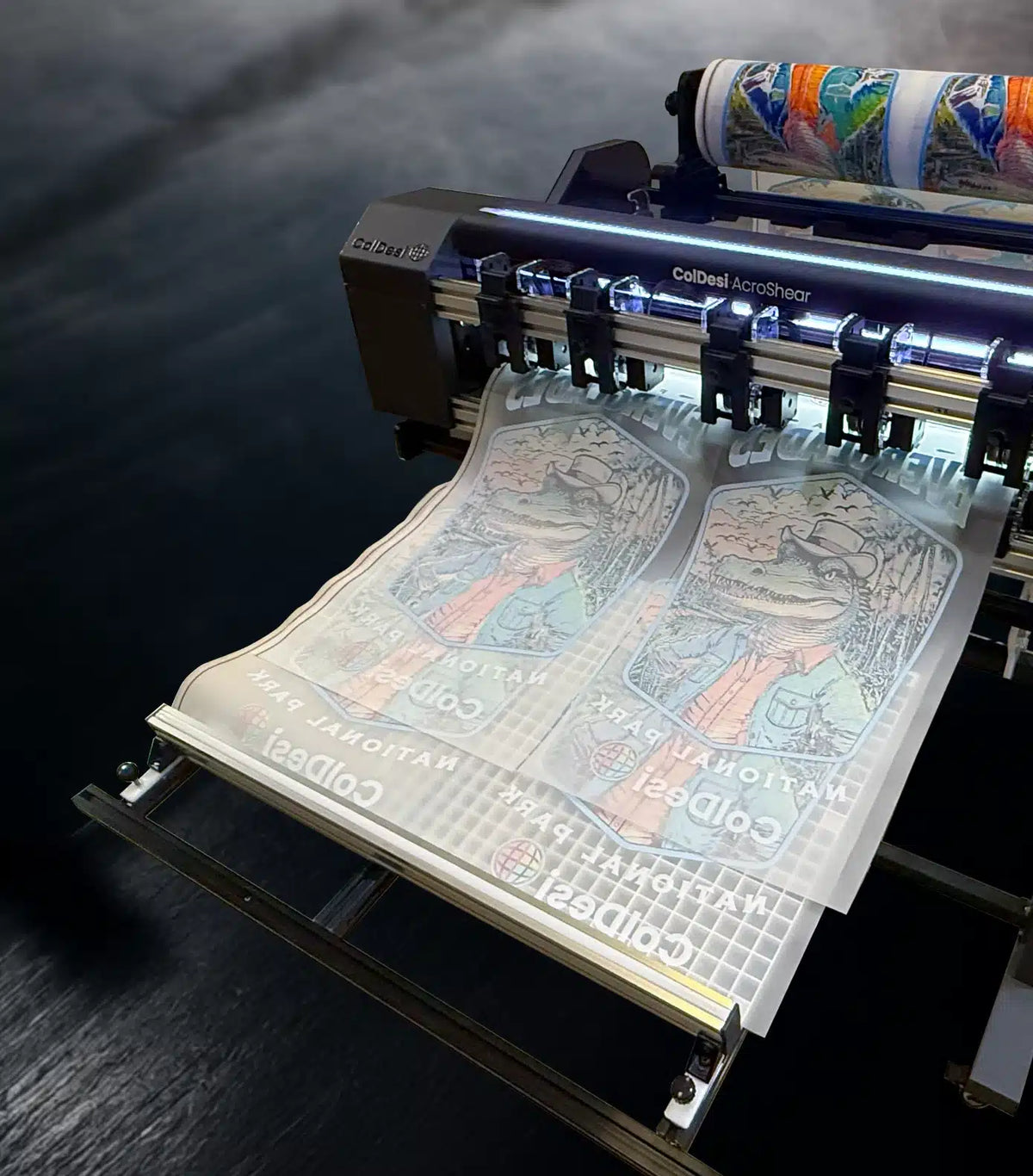

ColDesi AcroShear Automated DTF Transfer Cutting System
Cross Cutting Manual and automatic modes
Rotary Slitters Five slitter upgrade included
Unwind Included Process previously printed rolls
Onsite Training One day with installation

ColDesi AcroShear Automated DTF Transfer Cutting System

Automated DTF Transfer Cutting System

Crosscut and slit cured DTF film inline after your dryer or process previously printed rolls with the included unwind module.

  • Automatic Transfer Cutting: Crosscuts and slits printed, cured DTF film into individual transfer sheets.
  • Five Rotary Slitter Upgrade Included: Configure the slitting setup for your transfer layout.
  • Unwind Module Included: Process previously printed rolls separately from your printer.
  • LiDAR Film Monitoring: Monitors available film so cutting can pause while more film feeds through.
  • Dedicated Production Software: Generates cutting marks and job information independently of the printer RIP.
  • Onsite Installation and Training: Includes one day onsite. Equipment warranty is one year, excluding travel; cutting blade and shears have three months of coverage.
$16,99500
Get custom quote

Spend Less Time Cutting Transfers by Hand

Bring automated cutting into your DTF workflow, with crosscutting, rotary slitting, and the flexibility to finish previously printed rolls.

Reduce Manual Cutting

Automated crosscutting and the included five rotary slitters help reduce the hand cutting needed to separate cured DTF transfers.

Finish Rolls on Your Schedule

Run AcroShear after your dryer, or use the included unwind module to process previously printed rolls separately from printing.

Keep Film Moving at Its Own Pace

Integrated LiDAR monitors the film loop and allows cutting to pause while more film becomes available from the dryer.

Get Started With Onsite Training

Your package includes one day of onsite installation and training to help your team get familiar with AcroShear and its operation.

Description
DTF Transfer Finishing

Spend Less Time Cutting Transfers by Hand

AcroShear crosscuts and slits printed, cured DTF film into individual transfer sheets. Run it directly after your dryer or finish previously printed rolls separately from printing.

This package includes the 24" cross cutter, five rotary slitter upgrade, and unwind module, along with the Automated Production Application and one day of onsite installation and training.

At a Glance
✓ 24" maximum media width ✓ Five rotary slitter upgrade
✓ Unwind module included ✓ Manual and automatic cut modes
✓ LiDAR film-loop monitoring ✓ Printed-mark detection
✓ Dedicated production software ✓ Onsite installation and training

Two Ways to Fit Your Production Schedule

Cut Inline After Your Dryer

Position AcroShear downstream from the DTF dryer to cut film after printing and curing. LiDAR monitors the available film loop, allowing the cutter to pause when it needs more material instead of pulling against the upstream equipment.

Process Printed Rolls Separately

The included unwind module feeds previously printed and cured rolls into AcroShear. Schedule cutting independently when you want to finish rolls separately from the printing process.

Production Capacity by Transfer Size

Transfer dimensions and cutting configuration affect output. Use these production figures as a starting point when discussing your workflow with a ColDesi equipment specialist.

Transfer Size Output Per Hour
4" x 4" Up to 3,300 transfers
8" x 8" Up to 1,800 transfers
12" x 12" Up to 1,080 transfers

Actual output depends on artwork, cutting configuration, film, workflow, and other production conditions.

How AcroShear Controls the Cut

Cutting Information Printed on the Film

The included Automated Production Application generates crosscut marks, slitter-position information, and job-change information independently of the printer RIP. Printed registration marks guide crosscut positioning, while QR information communicates changes between jobs.

Slitter Setup for Each Layout

The five slitter combinations provide ten independently driven rotary shear positions, with two positions per combination. Engage the combinations required for the job. Slitter changes are operator-guided, with QR information providing setup details.

Film Transport That Avoids the Printed Area

AcroShear drives the film along its edges to help keep printed artwork away from the transport rollers. A relaxed film loop between the dryer and cutter allows LiDAR monitoring to manage the available material.

Controls Within Reach

A 3.5" touchscreen displays production information and system controls. An integrated Help Menu, LED status indicators, and an automatic startup equipment check provide guidance for the operator.

Your AcroShear Package

  • AcroShear 24" cross cutter with integrated LiDAR and optical detection
  • Five rotary slitter upgrade
  • Unwind module for offline cutting
  • Automated Production Application
  • One day of onsite installation and training

Technical Specifications

Maximum media width 24" / 600 mm
Compatible media DTF film
Production configurations Inline after a dryer or standalone with the included unwind module
Crosscut modes Manual and automatic
Slitter combinations 5, with selective engagement for the job
Rotary shear positions 10 independently driven positions, two per slitter combination
Film detection Dual printed-mark detection
Film management LiDAR film-loop monitoring
Included software Automated Production Application
Operator interface 3.5" touchscreen
AC input 100 to 240V AC
Power supply output 24V DC, 5A / 120W
Operating consumption 70W
Idle consumption Under 10W
Equipment dimensions 40" W x 27" D x 48" H
Machine and stand weight 87 lb
Crated weight 112 lb

Warranty Coverage

The equipment carries a one-year warranty, excluding travel. The cutting blade and shears have separate three-month warranty coverage.

Plan Your AcroShear Setup

Tell us about your printer, dryer, and transfer volume. A ColDesi equipment specialist can help you evaluate how AcroShear fits your production workflow.

Request AcroShear Information

Prefer to call? 877-793-3278

See it in action

Watch this machine in action

See the speed, quality, and workflow before choosing the right machine for your business.

High speed. Premium results. Built for your business.

DTF TRANSFER FINISHING

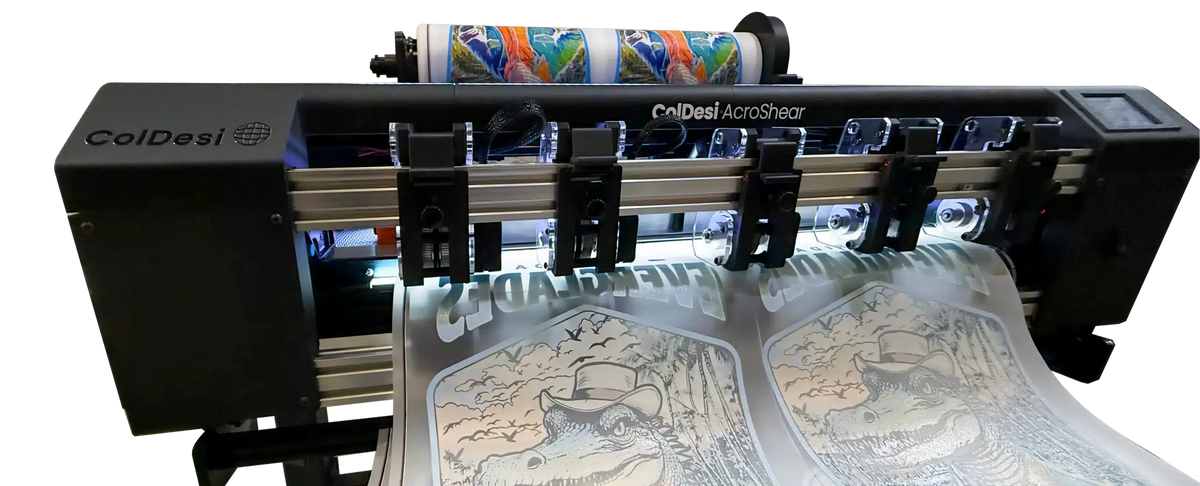

A Closer Look at AcroShear

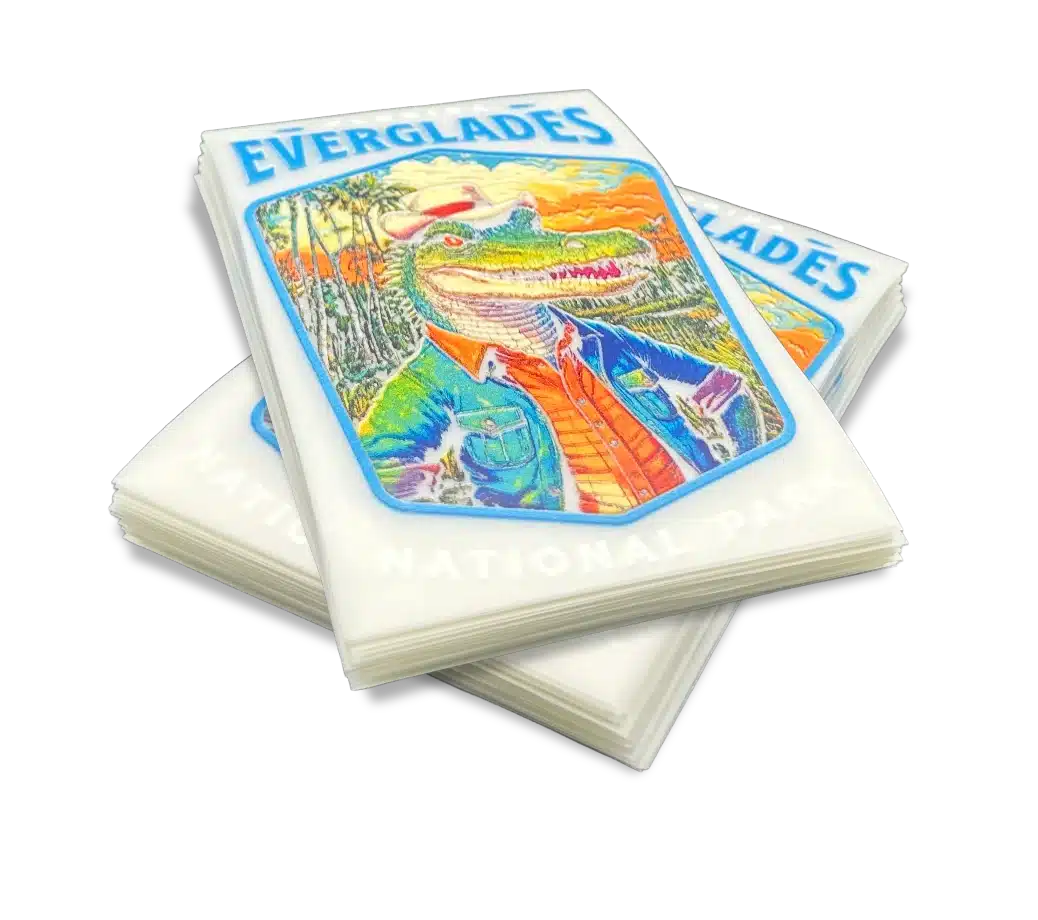

Explore the cutting system, its rotary slitters, and individual transfer sheets. This package includes the unwind module for processing previously printed rolls.

AcroShear Questions and Answers

What does AcroShear do?

AcroShear crosscuts and slits printed, cured DTF film into individual transfer sheets. It handles the cutting stage after printing and curing.

What equipment is included in this package?

This package includes the AcroShear 24" cross cutter with integrated LiDAR and optical detection, the five rotary slitter upgrade, and the unwind module for offline cutting.

Can it run directly after my DTF dryer?

Yes. AcroShear supports inline operation downstream from a DTF dryer, cutting film after it has been printed and cured.

Can I cut rolls separately from the printer?

Yes. The included unwind module feeds previously printed and cured rolls, so cutting can take place separately from printing.

How does AcroShear determine where to cut?

Printed registration marks guide crosscut positioning. QR information on the film communicates job changes, slitter positions, and cutting requirements.

What software comes with AcroShear?

The Automated Production Application is included. It generates cutting marks, slitter-position information, and job-change information independently of the printer RIP.

Does AcroShear offer manual and automatic cutting?

Yes. The cross cutter supports both manual and automatic cut modes.

What does the LiDAR monitoring do?

LiDAR monitors the available film loop. AcroShear can pause when it needs more film instead of pulling against the upstream equipment.

Is installation and training included?

Yes. One day of onsite installation and training is included.

What warranty comes with this package?

The equipment carries a one-year warranty, excluding travel. The cutting blade and shears have separate three-month warranty coverage.
