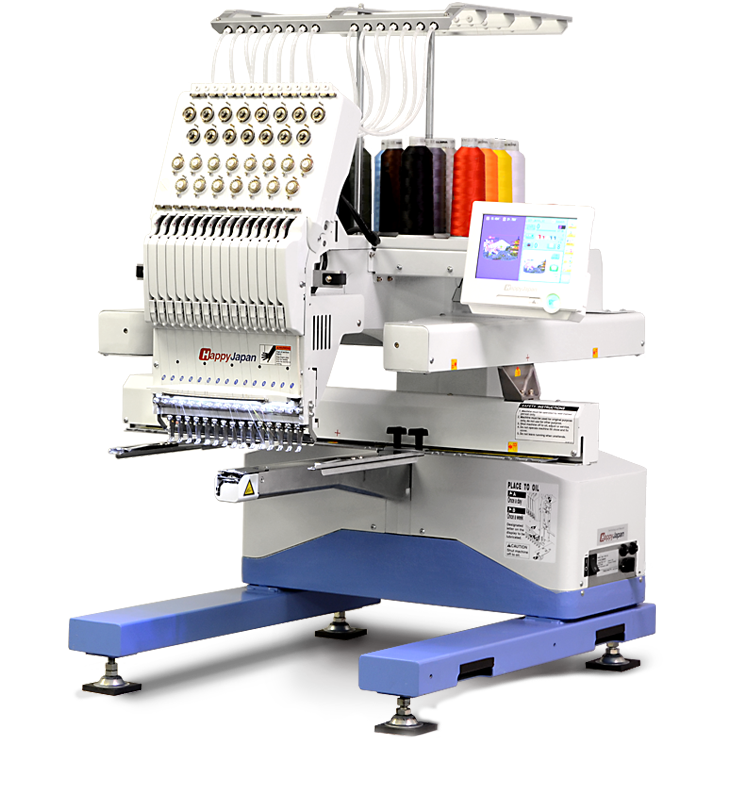

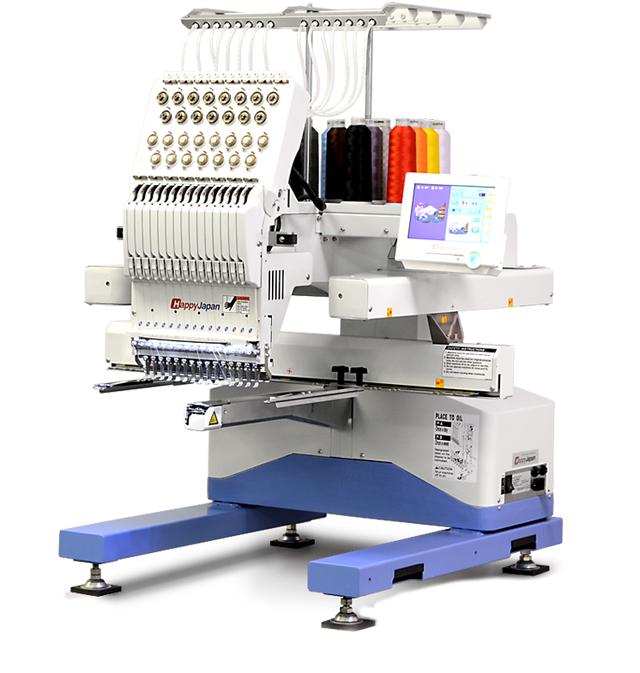

HappyJapan HCU2-1501 Embroidery Machine

HCU2-1501 Embroidery Machine

Designed for professional embroidery production, the HCU2-1501 is a high-speed, full-size single-head embroidery machine that offers 1,500 stitches per minute.

Equipped with a large sewing field, auto-fabric detection, digital tension, and advanced editing capabilities, it provides exceptional efficiency and precision for diverse applications, from flat goods and caps to oversized embroidery projects.

Standard Features:

• Color LCD Touchscreen Panel – Easy navigation and intuitive control
• Customizable Front Screen Apps – Personalized workflow options
• USB & LAN Ports – Direct PC connection for easy file transfer
• Built-in Help & Auto-Error Correction – Troubleshooting assistance
• Onscreen Editing & Text Combination – Modify designs and text directly on the machine
• Built-in Lettering & Stock Designs – Preloaded fonts and patterns for quick setup
• Third-Party Hoop Compatibility – Import and position compatible hoops onscreen
• Multi-Tasking Functionality – Load and set up additional designs while the machine is running

Advanced Editing Functions:

Sewing Field:

• Flat Goods: 23.6" W x 15.7" H
• Finished Ballcaps: 14.1" W x 3.1" H

Operating Speed:

• Flat Goods: 1,500 stitches per minute
• Finished Ballcaps: 1,200 stitches per minute

Memory: 100 million stitches / 3,000 designs

Onboard Lettering & Designs: 12 fonts (sizes from 2" to ¼") + 100 built-in stock designs

Power Requirements: Single Phase, 100-115V, 200W, 60Hz

Dimensions: 34" W x 31" D x 40" H

Weight: 99kg (218 lbs.)

Included with Purchase:

Hoops (2 of each size):

• Large Rectangular Hoops: 23.6" x 15.7" (600mm x 400mm)
• Square Hoops: 12.5" x 12.5" (320mm x 320mm)
• Round Hoops: 5.9" (150mm)
• Round Hoops: 4.7" (120mm)

Cap Sewing Kit:

• (2) Wide-Field Cap Frames
• Cap Stretcher (Hooping Station)
• Cap Driver

Software & Documentation:

• HappyLINK & HappyLAN connection software
• Operator's and Parts Manuals (PDF Format)

Additional Items:

• Starter Kit Full of Supplies
• Endura Thread Kit
• 10-Year Warranty
• Machine Training
• Machine Support
• HCU and HCD3 Series Stand
• $50 Supply Coupon - Redeemable at colmanandcompany.com
• $50 Blanks Coupon - Redeemable at colmanandcompany.com
• 1 Graphic Design Coupon (Up to $50) - Redeemable at ColDesi Graphics
• Wholesale DTF Transfer Membership

Double the Productivity Compared to Semi-Industrial Machines
HappyJapan embroidery machines, equipped with a powerful industrial motor and advanced HappyNext technology, surpass semi-industrial alternatives. Enjoy superior speed, enhanced efficiency, and greater profitability, helping you:

• Boost Production – Faster operation and precise stitching for higher output.
• Increase Profits – Quicker turnaround times to maximize revenue.
• Optimize Your Investment – Engineered for durability and long-lasting performance.

HappyJapan embroidery machines are expertly crafted in Japan, featuring a robust industrial motor designed for continuous use and exceptional durability. Built for peak efficiency, these machines incorporate cutting-edge technology to deliver up to twice the production capacity of standard embroidery models.

Supported by a 10-year warranty, HappyJapan machines are engineered to outlast and outperform competitors.

As an authorized distributor, ColDesi provides exclusive pricing and bundle deals, ensuring businesses access premium industrial embroidery solutions at an unmatched value.
