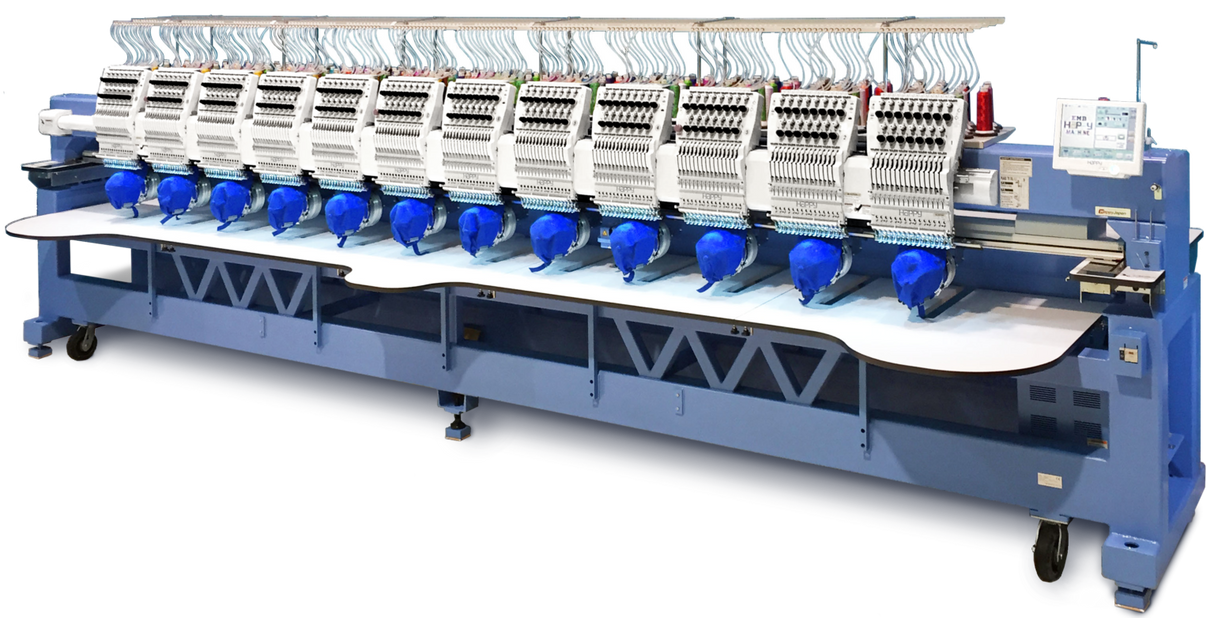

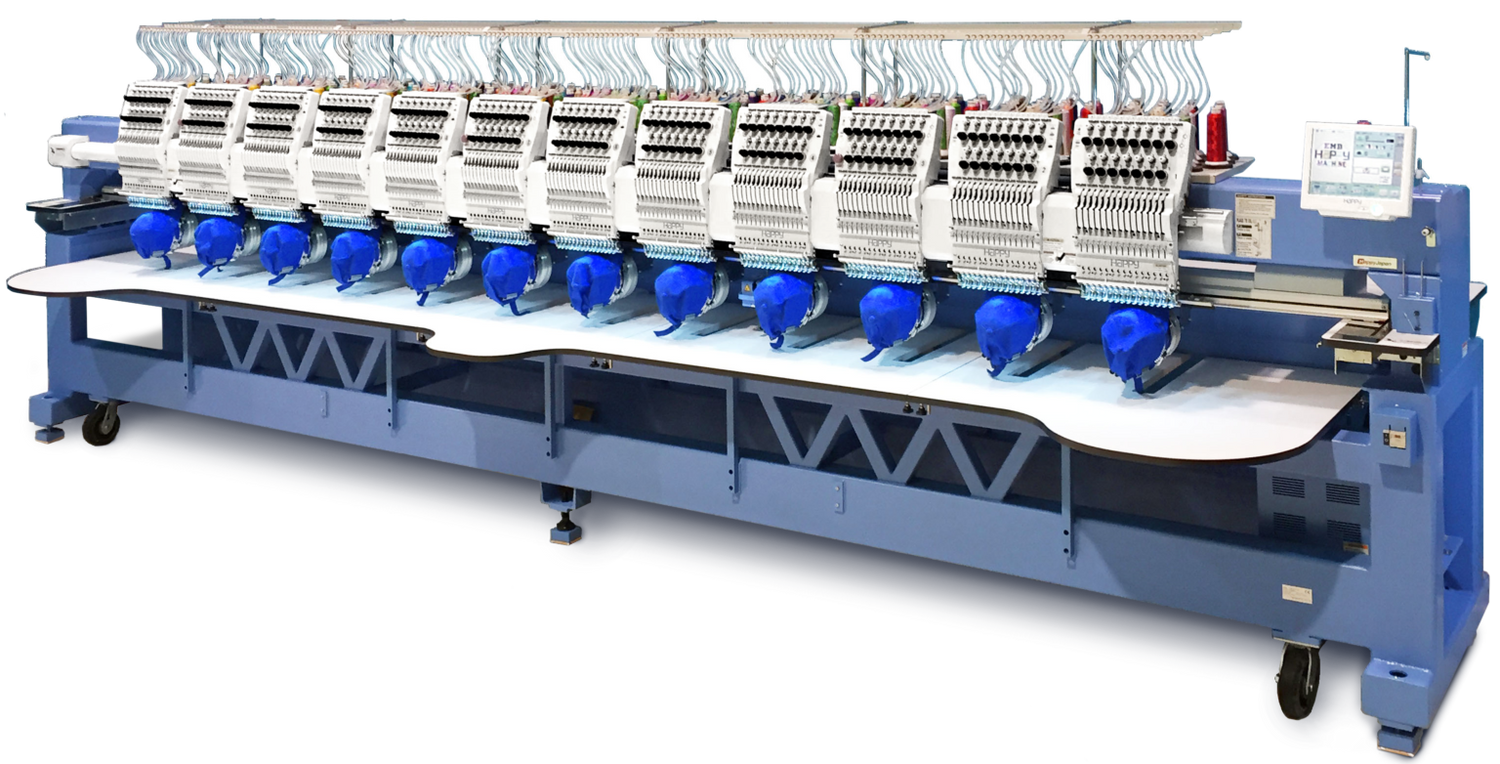

HappyJapan HCR3-1512 Embroidery Machine

HCR3-1512 | 12-Head Embroidery Machine

The HCR3-1512 is a 12-head embroidery machine designed for large-scale production. It delivers fast stitching with precise results. Its ergonomic design supports efficient operation, making it ideal for high-output embroidery businesses.

Advanced Servo Drive System

Upgrading to a servo motor brings enhanced speed, efficiency, and durability, giving the HCR3-1512 a clear edge over stepper-driven models. Key advantages include:

• Increased torque at high speeds – Effortlessly handles thick materials and intricate cap embroidery.
• Optimized energy efficiency – Reduces power consumption while minimizing heat generation.
• Stable high-speed performance – Ensures smooth operation, even at maximum output.
• Exceptional reliability in demanding settings – Built for continuous, high-volume production.

Standard Features:

• Color LCD Touchscreen Panel – Intuitive interface for easy navigation
• Customizable Front Screen Apps – Personalize workflow for efficiency
• USB & LAN Ports – Direct PC connection for seamless data transfer
• Built-in Help & Auto-Error Correction – Assists with troubleshooting and operation
• Onscreen Design & Text Editing – Modify designs and text directly on the machine
• Built-in Lettering & Stock Designs – Includes a selection of preloaded fonts and designs
• Onboard Editing Features:
  • Rotate, scale, mirror designs
  • Satin pull compensation and stitch cleanup
  • Lock stitching for reinforcement
• Third-Party Hoop Compatibility – Import and position compatible hoops onscreen
• Multi-Tasking Functionality – Load and set up additional designs while the machine is running

Specifications:

Sewing Field per Head:

• Tubular/Flat goods: 500 x 450mm (14.2" x 17.7")
• Finished ballcaps: 80 x 360mm (3.1" H x 14.1" W)

Operating Speed:

• Flat goods: 1,100 stitches/min
• Ballcaps: 1,000 stitches/min

Auto-Mend Mode: Keeps heads synchronized after thread breaks or stoppages

Operator Login & Auto-Reporting: Monitors productivity and machine performance

Memory: Stores up to 100 million stitches / 3,000 designs

Onboard Lettering & Designs: 12 fonts, sizes ranging from 2" to ¼" + 100 built-in stock designs

Power Requirements: Single Phase, 200-240V, 410W, 60Hz

Dimensions: 33" D x 213" W x 59.5" H (52" D x 213" W x 68.5" H with table)

Weight: 3,234 lbs.

Included with Purchase:

Hoops (2 per head):

• Square Hoops: (24) 12" x 12" (32cm x 32cm)
• Round Hoops: (24) 7.1" (18cm)
• Round Hoops: (24) 5.9" (15cm)
• Round Hoops: (24) 4.7" (12cm)

Cap Sewing Kit:

• (24) Wide-Field Cap Frames
• Cap Stretcher (Hooping Station)
• (12) Cap Drivers
• (6) Cap Sash

Software & Documentation:

• HappyLINK & HappyLAN connection software
• Operator’s and Parts Manuals (PDF Format)

• 2 Starter Kits Full of Supplies
• 2 Endura Thread Kits
• Repositionable Support Table
• Heavy-Duty Casters & Attachment Hardware
• $50 Supply Coupon - Redeemable at colmanandcompany.com
• $50 Blanks Coupon - Redeemable at colmanandcompany.com
• 1 Graphic Design Coupon (Up to $50) - Redeemable at ColDesi Graphics
• Wholesale DTF Transfer Membership
• Operator’s Toolkit
• 10-Year Warranty
• Machine Setup and Training
• Machine Support



Double the Productivity Compared to Semi-Industrial Machines
HappyJapan embroidery machines, equipped with a powerful industrial motor and advanced HappyNext technology, surpass semi-industrial alternatives. Enjoy superior speed, enhanced efficiency, and greater profitability, helping you:

• Boost Production – Faster operation and precise stitching for higher output.
• Increase Profits – Quicker turnaround times to maximize revenue.
• Optimize Your Investment – Engineered for durability and long-lasting performance.

HappyJapan embroidery machines are expertly crafted in Japan, featuring a robust industrial motor designed for continuous use and exceptional durability. Built for peak efficiency, these machines incorporate cutting-edge technology to deliver up to twice the production capacity of standard embroidery models.

Supported by a 10-year warranty, HappyJapan machines are engineered to outlast and outperform competitors.

As an authorized distributor, ColDesi provides exclusive pricing and bundle deals, ensuring businesses access premium industrial embroidery solutions at an unmatched value.
