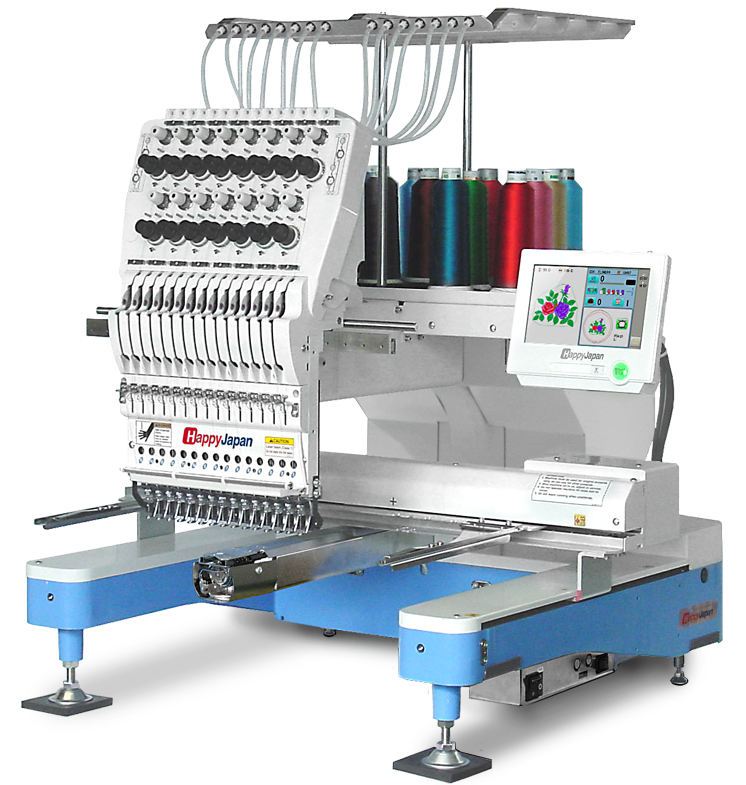

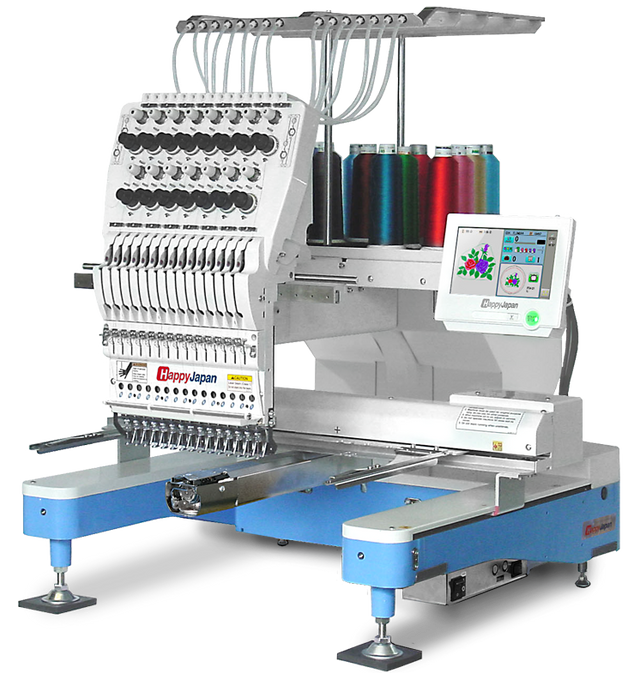

HappyJapan HCD3-1501 Embroidery Machine

HCD3-1501 Embroidery Machine

Built for professional embroidery production, the HCD3-1501 is the most advanced model in the HCD series, featuring a servo drive system that enhances both efficiency and performance.

Designed with cap embroidery in mind, this model ensures precise stitching on trucker-style mesh back hats, 3D puff designs, and flex-fit caps—perfect for tackling more challenging embroidery projects.

With its generous 17.25” x 16.5” hoop, the HCD3-1501 supports oversized designs, making it an ideal choice for jackets, patch orders, tapestries, flags, and more.

Advanced Servo Drive System
Upgrading to a servo motor brings enhanced speed, efficiency, and durability, giving the HCD3-1501 a clear edge over stepper-driven models. Key advantages include:

• Increased torque at high speeds – Effortlessly handles thick materials and intricate cap embroidery.
• Optimized energy efficiency – Reduces power consumption while minimizing heat generation.
• Stable high-speed performance – Ensures smooth operation, even at maximum output.
• Exceptional reliability in demanding settings – Built for continuous, high-volume production.

Standard Features:

• Color LCD Touchscreen Panel – Intuitive navigation for easy operation
• Customizable Front Screen Apps – Personalize workflow for efficiency
• USB & LAN Ports – Direct PC connection for design transfers
• Built-in Help & Auto-Error Correction – Guides users through troubleshooting
• Onscreen Editing & Text Combination – Modify designs and text directly on the machine
• Built-in Lettering & Stock Designs – Preloaded fonts and patterns for quick setup
• Third-Party Hoop Compatibility – Import and position compatible hoops onscreen
• Multi-Tasking Functionality – Load and set up additional designs while the machine is running

Advanced Editing Functions:

Sewing Field:

• Flat Goods: 20.5" W x 15.74" H
• Finished Ballcaps: 14.1" W x 3.1" H

Operating Speed:

• Flat Goods: 1,200 stitches per minute
• Finished Ballcaps: 1,000 stitches per minute

Memory: 100 million stitches / 3,000 designs

Onboard Lettering & Designs: 12 fonts (sizes from 2" to ¼") + 100 built-in stock designs

Power Requirements: Single Phase, 100-115V, 170W, 60Hz

Dimensions: 33.3" W x 32.2" D x 29.3" H

Weight: 110kg (242 lbs.)

Included with Purchase:

Hoops (2 of each size):

• Round Hoops: 4.7" (188mm)
• Round Hoops: 5.9" (150mm)
• Square Hoops: 12.5" x 12.5" (318mm x 318mm)
• Large Rectangular Hoops: 17.25" x 16.5" (438mm x 419mm)

Cap Sewing Kit:

• (2) Wide-Field Cap Frames
• Cap Stretcher (Hooping Station)
• Cap Driver

Software & Documentation:

• HappyLINK & HappyLAN connection software
• Operator’s and Parts Manuals (PDF Format)

Additional Items:

• Starter Kit Full of Supplies
• Endura Thread Kit
• 10-Year Warranty
• Machine Training
• Machine Support
• HCU and HCD3 Series Stand
• $50 Supply Coupon - Redeemable at colmanandcompany.com
• $50 Blanks Coupon - Redeemable at colmanandcompany.com
• 1 Graphic Design Coupon (Up to $50) - Redeemable at ColDesi Graphics
• Wholesale DTF Transfer Membership

Double the Productivity Compared to Semi-Industrial Machines
HappyJapan embroidery machines, equipped with a powerful industrial motor and advanced HappyNext technology, surpass semi-industrial alternatives. Enjoy superior speed, enhanced efficiency, and greater profitability, helping you:

• Boost Production – Faster operation and precise stitching for higher output.
• Increase Profits – Quicker turnaround times to maximize revenue.
• Optimize Your Investment – Engineered for durability and long-lasting performance.

HappyJapan embroidery machines are expertly crafted in Japan, featuring a robust industrial motor designed for continuous use and exceptional durability. Built for peak efficiency, these machines incorporate cutting-edge technology to deliver up to twice the production capacity of standard embroidery models.

Supported by a 10-year warranty, HappyJapan machines are engineered to outlast and outperform competitors.

As an authorized distributor, ColDesi provides exclusive pricing and bundle deals, ensuring businesses access premium industrial embroidery solutions at an unmatched value.
