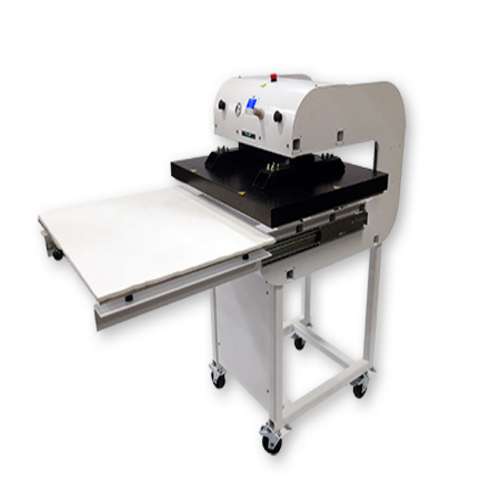

Geo Knight DK32AP 26"x32" Air-Automatic Large Format Press

Digital Knight 26" X 32" Automatic Press

The DK32AP is an air-operated automatic large format 26" x 32" heat transfer press. The DK32AP provides a production oriented heat press with the benefits of push button operation, fully digital temperature & time control, and solid casting design with an affordable automatic heat press price. It is available in a 26" X 32" heater block size.

The DK32AP utilizes the same Digital Knight control system as the MaxiPress AIR Series, and operates with a smooth swing-away fashion and high pressure with PSI Control.
The DK32AP is ideal for oversized transfers, as they handle the larger workload with a cost lower than the MaxiPress line.

• 26"x32" Heat platen
• Automatic air operated pressing (air compressor required)
• Automatic digital timer & dual pre-press timer
• PSI pressure control gauge and air regulator
• Fully digital temperature control (32°-600°F range)
• 6000 lbs max total applied force
• Holds 70 memory settings for time and temperature for different printing applications
• Solid steel welded framework
• SuperCoil-Microwinding heater technology insures even heat
• Accommodates materials up to 2" thick
• Temperature readout accuracy +-2°F
• User selectable end-of-cycle alarms
• Records number of pressing cycles done!
• Teflon-coated 3⁄4" thick heat platen
• (Add $50 for 220 Volt for outside the US)
• Lifetime warranty on heat platen
• 1 year warranty on parts, controller and frame
• Elec: 5600W / 25A / 220V (1PH)
• Heat Press weight 790 Lbs
• Shipping weight 1100 Lbs
• Ships via truck

At the heart of these machines is a state-of-the-art digital microprocessor control and proprietary heat control circuit field tested beyond 10 million heating cycles. This allows for an unprecedented 3 year warranty on the control.

The Digital Knight controller features an oversized LCD display for easy reading of time, temperature, and pressure/height gauge readings.
