USB READER - EMHD

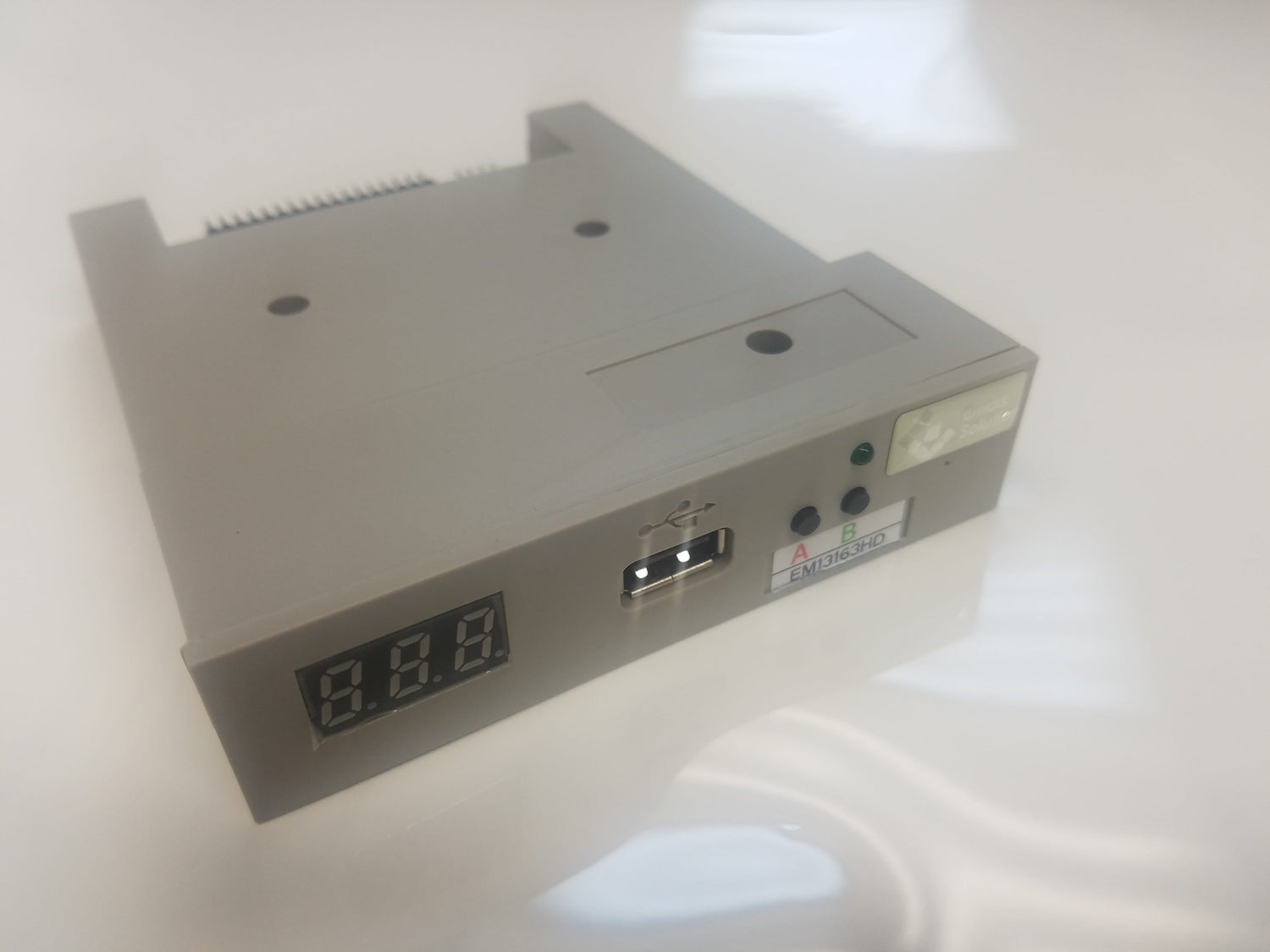

Our USB-READER-EMHD replaces the need for the 3.5" floppy disk and uses the common USB flash drive for your embroidery file relay. The USB READER will replace your existing floppy drive with an independently operated USB flash drive reader. No other changes to your system are needed besides removing the existing drive and replacing it with this drive. Easy installation and no additional drivers or configurations are required. Simply remove the existing floppy disk drive, then install this USB READER. Easy-peasy. The USB READER will connect to your existing power and ribbon cables.

JUMPER CONNECTIONS: It is very important to read these instructions and set your USB-Reader to the properly configured settings for your machine brand. There are small 'jumper' connectors within the product packaging that should be used for this purpose.

Machine application:

SWF - all models

Tajima - TMEG, TMFD, TFKN, TFGN, TEHX, TMEX, TMKD, TMLH, TMCE, STKN, TFGN

Happy - HMF, HCM, HCA

Brother - BES, BAS

Barudan - BEDS, BEMR, BEMS, BEMX
