DTF 24H5 Transfer Printer - Standard Colors
Sale price
$28,995.00
Regular price
$34,495.00
Unit price
/
Unavailable
Description
Description

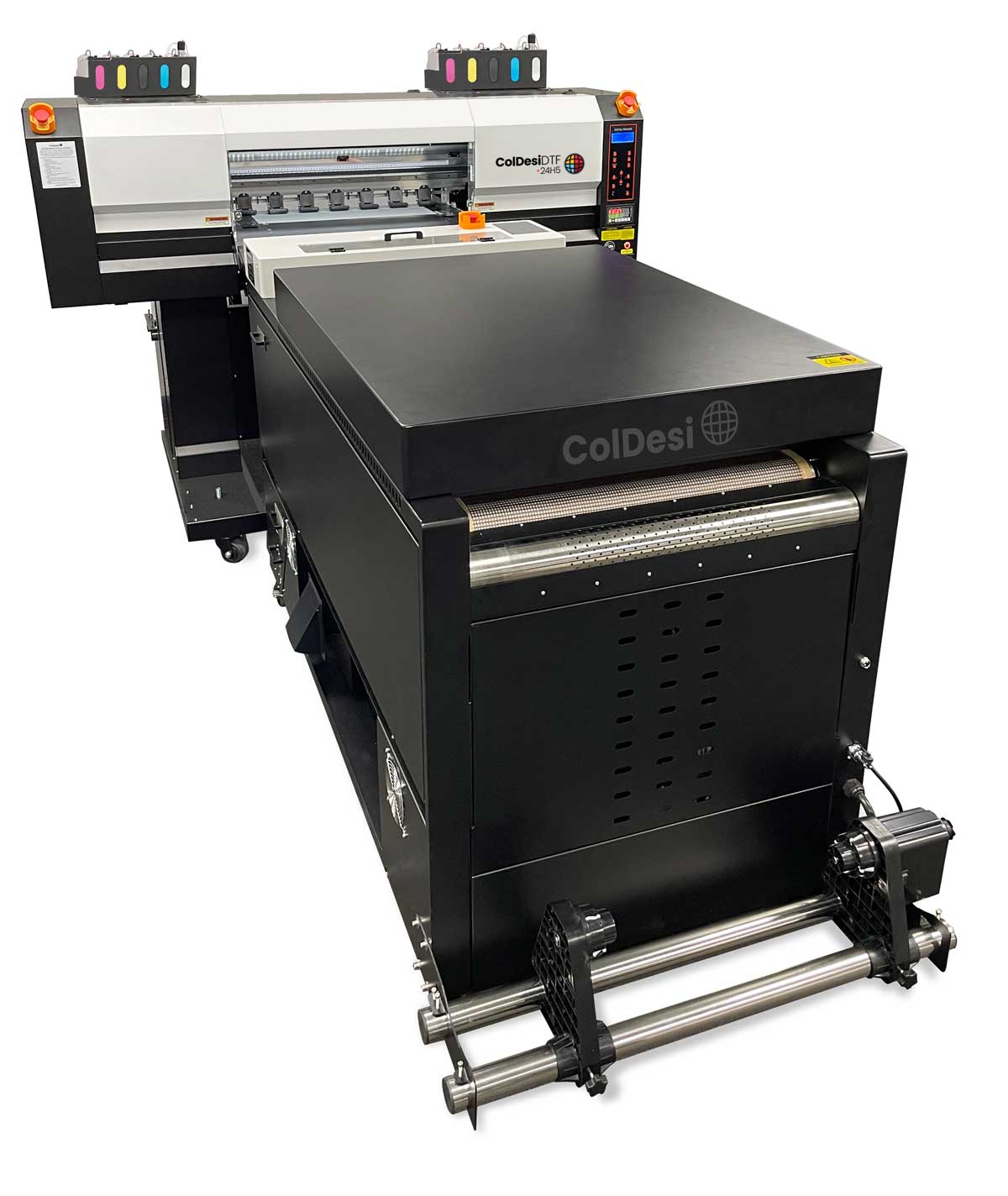

Meet the ColDesi 24H5 DTF Printer: Fast, Durable, and Designed for Growth
The ColDesi 24H5 is a production-grade DTF printer that blends speed, accuracy, and ease of use into one efficient solution. Designed for apparel businesses that need to move fast without sacrificing detail, it consistently delivers sharp, full-color prints across a wide variety of products.
Its five-head Epson system and wide 24-inch format ensure fast, uninterrupted operation—making it ideal for decorators managing bulk orders or working with multiple designs.
What You Can Expect:
- High-definition transfers that pop on every garment
- Efficient press times to keep your workflow moving
- Reliable image placement across various fabric types
- Durable prints that withstand repeated washing and wear
Built to Streamline Your Workflow
High-Precision Print System
The 24H5 is powered by five industrial-grade i3200 Epson print heads, enabling smooth ink application and clean edge definition. Each layer is accurately placed for clear, professional-quality results that meet the standards of high-demand print shops.
Effortless Maintenance with Wet Capping
The automated wet capping system reduces downtime and prevents printhead clogs during periods of inactivity. It helps minimize ink waste and simplifies routine maintenance for busy operators.
Automated Film Tension Control
A built-in dancer bar system automatically manages film tension, ensuring smooth media feed throughout production. This prevents common issues like wrinkling or stretching and eliminates the need for manual adjustments.
Eco-Friendly Certified Inks
The 24H5 uses OEKO-TEX® ECO PASSPORT certified, water-based inks—safe for human contact and compliant with strict environmental standards. These safe, sustainable inks give your business a competitive edge in eco-conscious apparel production.
Professional RIP Software
ColDesi’s Print Optimizer software provides full control over color output, ink flow, and job settings—giving print professionals the tools they need to balance quality, speed, and cost.
Integrated Fume Extraction
An onboard fume extraction system removes particles and odors at the source, helping maintain a clean and healthy work environment without external equipment.
Heated Print Path & High-Efficiency Shaker/Dryer
White ink sets instantly along the heated path for improved powder adhesion, while the advanced shaker/dryer system ensures each print is evenly coated, cured, and press-ready.
Benefits:
Vivid Color Performance
- Print in CMYK + White to enjoy a brilliant color spectrum
- Improve accuracy for logos, illustrations, and photographic images
- Achieve seamless gradient blending for lifelike detail
- Handle bulk orders confidently with 5-head output
- Run multiple jobs in a single batch to reduce idle time
- Streamline workflows with minimal setup requirements
Profit-Driven Printing:
- Reduce per-print costs with optimized ink and film use
- Accelerate job completion to take on more clients
Lead with Innovation:
- Compete with high-volume screen printers—without complex prep
- Deliver consistent, durable transfers with superior color results
Print Versatility to Match Your Business Needs
The ColDesi 24H5 DTF Printer provides adaptable, premium transfer printing that allows for storage of completed transfers for up to six months—making it easy to split printing and pressing into separate workflows. Designed for flexibility, it performs exceptionally across a wide array of garment types and substrates.
- Garments & Products: T-Shirts - Sweatshirts - Polos - Hoodies - Backpacks - Aprons - Sports Uniforms - Company Dress Shirts - Flags & More
-
Fabric Types: Combed Cotton - Ring-Spun Cotton - Organic Cotton - Polyester - Poly/Cotton Blends - Tri-Blends - Polyester/Spandex Blends & More
Why the ColDesi 24H5 DTF Printer Stands Out
Reliable, High-Performance Output:
DTF printing has become a go-to method for producing consistent, high-volume, full-color transfers. The ColDesi 24H5 takes this technology a step further with its robust 5-head configuration—delivering vivid, high-definition prints at high speeds, ideal for fast-paced apparel production environments.
Innovative Design Backed by Experience:
With decades of leadership in the custom apparel industry, ColDesi brings deep expertise to every machine. The 24H5 is the result of innovation fused with reliability, supported by dedicated sales, tech, and training professionals ready to help your business grow and succeed in DTF printing.
Printer Highlights:
- Auto Supply Ink System
- White Ink Management System
- Anti-Collision System
- Film Print Vacuum System
- In-Line Heater Pre/Post (Post Default)
- Print Head Heating System
- Self-Cleaning Function
- Advanced Paper Pass System
Shaker/Dryer Highlights:
- Equipment Models:
- Optional POW
- LCD Touch Screen Control Menu
- Auto Belt Feed with Front/Back Vacuum
- Weighted Powder DAM/Cradle
- Integrated Fume Extractor
- Pre-Heat Ramp (Pre-curing Zone)
- Pre-Heat Table
- Laser Sync Sensor - Belt Control & Powder Release
Package Includes:
- ColDesi Direct-to-Film 24H5 Transfer Printer
- ColDesi 24" POWR Shaker/Dryer with Built-In Fume Extractor & Powder Recirculation System
- ColDesi DTF Print Optimizer V2 Keyless Software
- DTF 24H5 Start Up Kit:

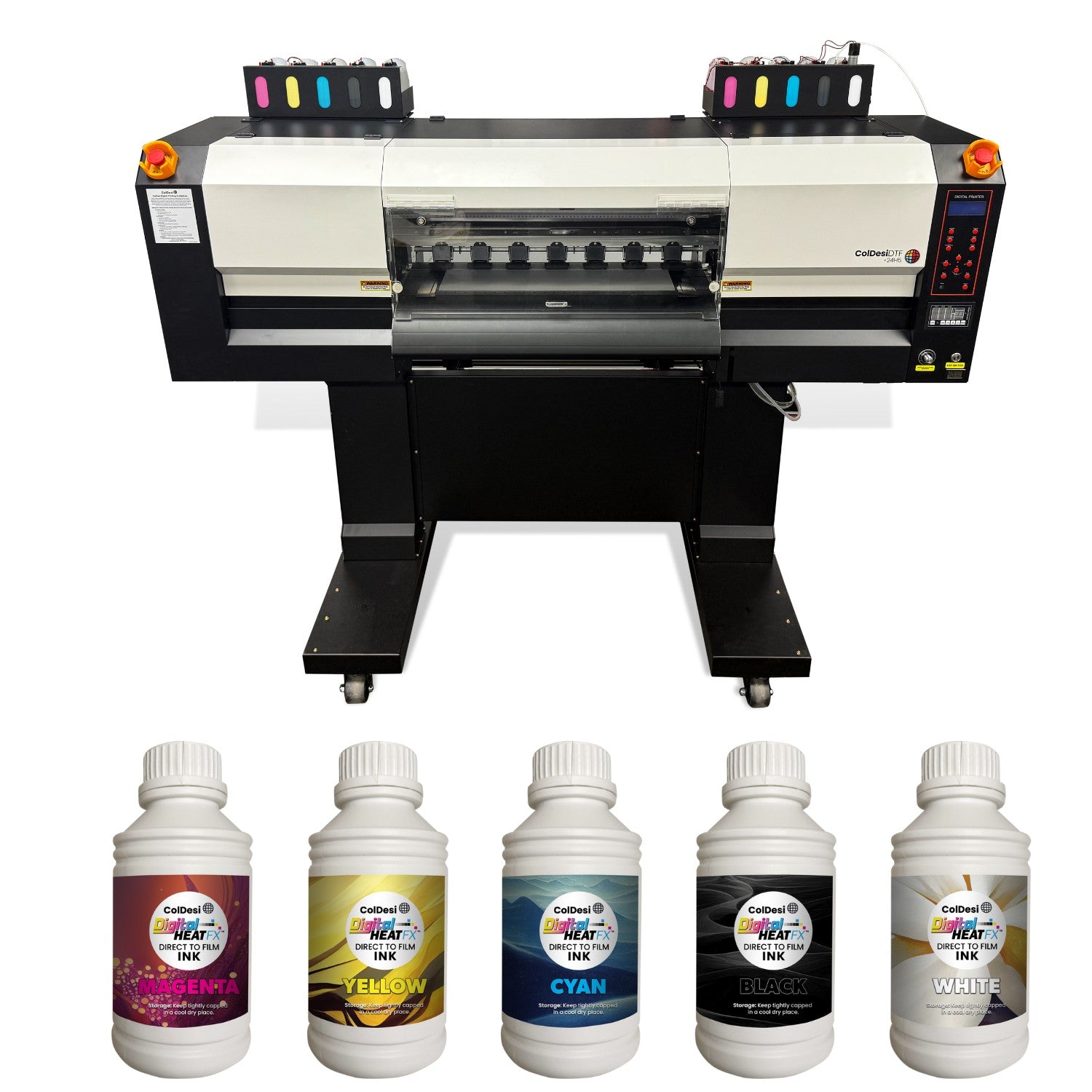

- 3 x DTF CMYK - 500ml each
- 4 x DTF White Ink - 500ml each
- 8 x DTF Adhesive Powder - 1 lb. each
- 2 x Rolls of Series G DTF Film 24" x 328' (60.96 cm x 100 m)
- Cleaning Solutions & Supplies
- and more
- ClickWear Membership Licence
- $50 Blank Apparel - Redeemable at colmanandcompany.com
- $50 Supply Coupon - Redeemable at colmanandcompany.com
- Graphics Design Coupon (Up to $50) - Redeemable at ColDesi Graphics
- 7-Day-a-Week Equipment Support / Nationwide DTF Certified Technicians
- Online Self-Paced Training / One-on-One Training Available
- 1 Year Warranty 6 Months Print Head
ColDesi 24H5 DTF Printer Specs:
- Print Heads: 5 Epson i3200 Print Heads
- Printing Technology: Piezoelectric Inkjet
- Print Method: Variable DOD using VSD
-
Color Modes:
- Included: STANDARD Color Gamut (CMYK + White)
- Optional: EXPANDED Color Gamut (CMYK + OG + White)
- Max. Print Width: 22.5" (57.15 cm)
- Print Media: ColDesi 24" G Series Hot Peel PET Transfer Film - 24" x 328' (60.96 cm x 100 m)
- Media Transmission: Automatic Tension System (Dancer System)
-
Resolution:
- 720 x 1200 DPI, 4-pass
- 360 x 3600 DPI, 6-pass
-
Speed:
-
Included STANDARD Color Gamut: 160 linear feet, 48 meters/hour. 400+ (8"x10") transfers/hour.
- Optional EXPANDED Color Gamut: 145 linear feet, 40 meters/hour. 300 (8"x10") transfers/hour.
-
Included STANDARD Color Gamut: 160 linear feet, 48 meters/hour. 400+ (8"x10") transfers/hour.
- Printer Weight: 358 lbs. / 162 kg
- Dryer Weight: 847 lbs. / 384 kg
- Electrical Requirements: Combined 220V/30A
-
Dimensions:
- Printer Dimensions: 35.5" x 78"
- Shaker/Dryer: 110.5" x 33"
-
Combined Dimensions: 151" x 78"
- Ink Type: ColDesi DTF OEKO-TEX ECO PASSPORT Certified Pigmented Water Based Textile Ink
- Ink Capacity: 500 ml Bags
- Transmission Interface: Ethernet
- Supported OS: Windows 10 PC (or greater)
- Included RIP Software: ColDesi's DTF Print Optimizer Software
Optimal Operating Environment:
Place the printer in a clean, dust-free space with a stable, moderate temperature between 60°F and 80°F (15.6°C – 26.7°C) and 50% - 70% humidity to ensure optimal performance.
Delivery & Setup:
Delivered to your receiving area. Uncrating and self-installation are required. The units are on casters for easy mobility, but handling requires 3-4 people. Combined dimensions include pre-heat table and rear dryer assembly, see site readiness document for details.
Software Requirements:
The printer runs on ColDesi’s DTF Print Optimizer Software and requires a dedicated Windows 10 (or newer) PC with 32 GB RAM, 500 GB SSD, Ethernet, and Wi-Fi. Specific hardware specifications are recommended for best results.
Specifications
Specifications
-
Shaker DryerPOW/POWR
-
Ink Delivery System5-7 Color Bulk Ink System (SMART Cartridge Ink System)
Water Based Textile Ink
500 ml Bottles
OEKO-TEX ECO PASSPORT-Certified Inks -
Machine DimensionsPrinter: 30" x 78" (76.2 x 198.12 cm)
Dryer: 94.5" x 36" (240.03 x 91.44 cm)
Combined: 124.5" x 78" (316.23 x 198.12 cm) -
Maintenance Features
- Auto Supply Ink System
- White Ink Management System
- Anti-Collision System
- Film Print Vacuum System
- In-Line Heater Pre/Post (Post Default)
- Self-Cleaning Function (Automated Wet Capping)
- LCD Touch Screen Control Menu
- Auto Belt Feed with Front/Back Vacuum
- Weighted Powder PAM/Cradle
- Integrated Fume Extractor
- Pre-Heat Table
- Powder Recirculatory System
- Laser Sync Sensor
- Belt Control & Powder Release
-
Media TransmissionAutomatic Tension System (Dancer System) and Film Take Up
-
Operating ConditionsRecommended Workspace: 196.5"x 150" (499.11 x 381 cm)
Operating Temperature: 60° - 80°F (15.6 - 26.7°C)
Operating Humidity: 50% - 70% -
Operating System CompatibilityWindows PC w/Quad Core Processor - 32GB RAM and 500GB SSD - Transmission Interface: Ethernet
-
Print Head TechnologyEpson i3200 Print Heads Piezoelectric Inkjet Variable DOD Using VSD
-
Print MediaDigitalHeat FX - PET Transfer Film
24" x 328' (60 cm x 100 m) -
Print Resolution720 x 1200 DPI, 4-Pass, 147.4 LF/hr (44.93 m/h)
360 x 3600 DPI, 6-Pass, 103.8 LF/hr (31.63 m/h) -
Support7 Day a Week Equipment Support
Nationwide DTF Certified Technicians -
TrainingOnline-Self Paced Training
One-on-One Training Available -
VoltageCombined: 240V/30A
-
Warranty2-Year Warranty / 1-Year Print Head Warranty
-
WeightPrinter: 550 lbs / 245 kg
Dryer: POW 562 lbs / 255 kg (POWR 635 lbs / 288 kg)
Printer Shipping Weight: 750 lbs / 341 kg
Dryer Shipping Weight: 915 lbs / 415 kg -
What's IncludedStartup Consumables Kit
Maintenance Kit
Print Optimizer RIP Software -
ConfigurationStandard: CMYK + White Fluorescent: CMYK(FM)(FY) + White Expanded: CMYKOG + White
-
Heads5
-
Paper Size22.5in.
