SKU: DTF-24H5-OG

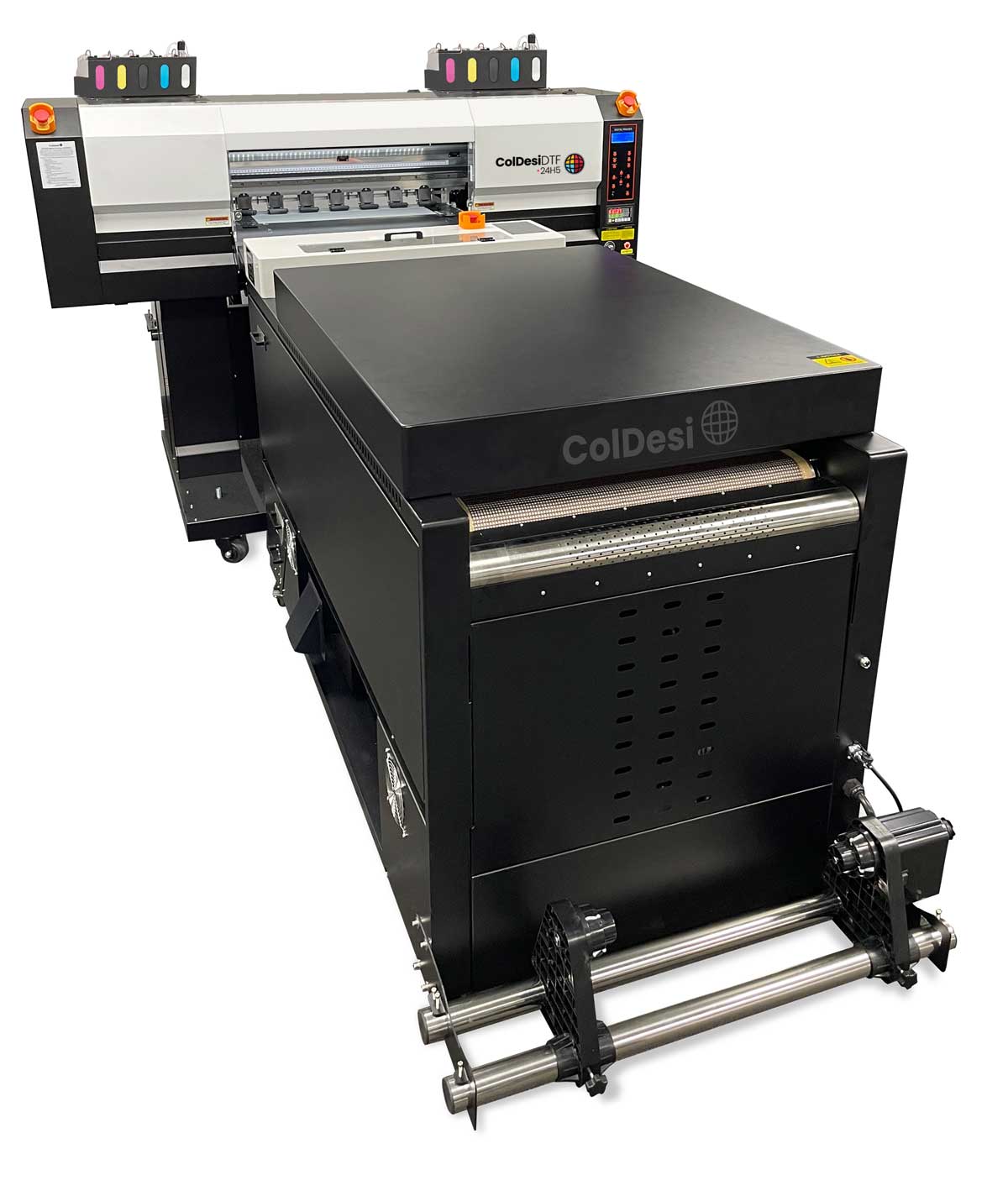

DTF 24H5 Transfer Printer - Expanded Colors

$28,995.00

Product videos

Description
Take Your Apparel Production & Color Gamut to the Next Level with the 24H5 DTF Printer - Expanded Color Package


The ColDesi 24H5 DTF Printer is engineered for high-demand production environments—delivering superior output without compromising quality. Leveraging advanced print technology, it produces sharp, vibrant, full-color transfers with pinpoint accuracy on a wide variety of fabrics and substrates.

Equipped with a 24-inch print width and five Epson i3200 heads, the 24H5 delivers remarkable speed and precision, supporting both standard and wide-gamut color modes.

With CMYKOG + White capability, you’ll achieve deeper color saturation, smoother transitions, and greater creative flexibility—ideal for brand-critical work.
  • Produces eye-catching, high-resolution prints across numerous garment types
  • Enables precise image alignment on nearly any print surface
  • Accelerates workflow with fast press times built for volume
  • Creates long-lasting transfers that retain quality through repeated washing


Features:
Precision 5-Head Print System
The ColDesi 24H5 features 5 advanced Epson i3200 print heads that produce consistent, high-resolution output in CMYK, white, and expanded color modes. This precision-driven system ensures optimal ink layering—including a smooth white underbase—directly on the film for crisper edges and superior definition, often exceeding the results of traditional screen printing.

Expanded Gamut for Elevated Color Accuracy
Going beyond standard CMYK, the 24H5 Entended Color Package includes an optional expanded color gamut using CMYKOG + White (Cyan, Magenta, Yellow, Black, Orange, Green). This extended configuration delivers richer color depth, more nuanced gradients, and refined tonal transitions—perfect for high-fidelity graphics, branding elements, and complex multi-color artwork.

Intelligent Wet Capping for Maintenance Ease
The printer’s Automated Wet Capping System simplifies upkeep while preserving performance. Designed to minimize ink waste and reduce manual effort, it automatically caps the print heads as needed—preventing clogs during idle times and keeping production running efficiently.

Automated Tension System for Perfect Media Control
To maintain smooth, even film movement, the 24H5 integrates a smart dancer bar system with sensor-controlled tension. This feature helps avoid slack, distortion, or wrinkles, ensuring accurate media alignment and consistent print quality during long production runs—with minimal need for operator adjustments.

Certified Inks for Safer, Greener Printing
ColDesi’s pigmented, water-based inks are OEKO-TEX® ECO PASSPORT certified, guaranteeing compliance with global health and environmental standards. These safe, sustainable inks give your business a competitive edge in eco-conscious apparel production.

Professional RIP Software for Job Optimization
Every 24H5 comes equipped with ColDesi’s Print Optimizer Software, offering advanced tools for controlling ink usage, color management, and job flow. Fine-tune each print by adjusting ink channels, optimizing gradient coverage, or reducing waste on single-color designs.

Built-In Fume Extraction for Cleaner Operations
Eliminating the need for external units, the 24H5 features an integrated fume extraction system. It effectively filters airborne particles and odors, helping maintain a cleaner, healthier production space while reducing equipment clutter and overhead.

Heated Pathway and High-Performance Shaker/Dryer
Drying begins instantly thanks to the 24H5’s heated print path, which cures the white ink layer for optimal powder bonding. Paired with the powerful POWR Shaker/Dryer system, each print is uniformly coated, dried, and prepped for transfer—ensuring maximum efficiency from print to press.


Benefits:

Expanded Color Performance
  • Print in CMYKOG + White to unlock a broader color spectrum
  • Add orange and green to enrich vibrancy and tonal range
  • Improve accuracy for logos, illustrations, and photogr0aphic images
  • Achieve seamless gradient blending for lifelike detail
High-Efficiency Production:
  • Handle bulk orders confidently with 5-head output
  • Run multiple jobs in a single batch to reduce idle time
  • Streamline workflows with minimal setup requirements
Profit-Driven Printing:
  • Reduce per-print costs with optimized ink and film use
  • Accelerate job completion to take on more clients
Lead with Innovation:
  • Compete with high-volume screen printers—without complex prep
  • Deliver consistent, durable transfers with superior color results

Print Versatility to Match Your Business Needs
The ColDesi 24H5 DTF Printer provides adaptable, premium transfer printing that allows for storage of completed transfers for up to six months—making it easy to split printing and pressing into separate workflows. Designed for flexibility, it performs exceptionally across a wide array of garment types and substrates.
  • Garments & Products: T-Shirts - Sweatshirts - Polos - Hoodies - Backpacks - Aprons - Sports Uniforms - Company Dress Shirts - Flags & More
  • Fabric Types: Combed Cotton - Ring-Spun Cotton - Organic Cotton - Polyester - Poly/Cotton Blends - Tri-Blends - Polyester/Spandex Blends & More
Why the ColDesi 24H5 DTF Printer Stands Out

Reliable, High-Performance Output:
DTF printing has become a go-to method for producing consistent, high-volume, full-color transfers. The ColDesi 24H5 takes this technology a step further with its robust 5-head configuration—delivering vivid, high-definition prints at high speeds, ideal for fast-paced apparel production environments.

Innovative Design Backed by Experience:
With decades of leadership in the custom apparel industry, ColDesi brings deep expertise to every machine. The 24H5 is the result of innovation fused with reliability, supported by dedicated sales, tech, and training professionals ready to help your business grow and succeed in DTF printing.


Printer Highlights:
  • Auto Supply Ink System
  • White Ink Management System
  • Anti-Collision System
  • Film Print Vacuum System
  • In-Line Heater Pre/Post (Post Default)
  • Print Head Heating System
  • Self-Cleaning Function
  • Advanced Paper Pass System

Shaker/Dryer Highlights:
  • Equipment Models:
    • Optional: POW
  • LCD Touch Screen Control Menu
  • Auto Belt Feed with Front/Back Vacuum
  • Weighted Powder DAM/Cradle
  • Integrated Fume Extractor
  • Pre-Heat Ramp (Pre-curing Zone)
  • Pre-Heat Table
  • Laser Sync Sensor - Belt Control & Powder Release


Package Includes:
  • ColDesi Direct-to-Film 24H5 Transfer Printer
  • ColDesi 24" POWR Shaker/Dryer with Built-In Fume Extractor & Powder Recirculation System
  • ColDesi DTF Print Optimizer V2 Keyless Software
  • DTF 24H5 Start Up Kit:
    • 2 x DTF CMYKOG - 500ml each
    • 4 x DTF White Ink - 500ml each
    • 8 x DTF Adhesive Powder - 1 lb. each
    • 2 x Rolls of Series G DTF Film 24" x 328' (60.96 cm x 100 m)
    • Cleaning Solutions & Supplies
    • and more
  • ClickWear Membership Licence
  • $50 Blank Apparel - Redeemable at colmanandcompany.com
  • $50 Supply Coupon - Redeemable at colmanandcompany.com
  • Graphics Design Coupon (Up to $50) - Redeemable at ColDesi Graphics
  • 7-Day-a-Week Equipment Support / Nationwide DTF Certified Technicians
  • Online Self-Paced Training / One-on-One Training Available
  • 1 Year Warranty 6 Months Print Head
ColDesi 24H5 DTF Printer Specs:

  • Print Heads: 5 Epson i3200 Print Heads
  • Printing Technology: Piezoelectric Inkjet
  • Print Method: Variable DOD using VSD
  • Color Mode:
    • Optional: STANDARD Color Gamut (CMYK + White)
    • Included: EXPANDED Color Gamut (CMYK + OG + White)
  • Max. Print Width: 22.5" (57.15 cm)
  • Print Media: ColDesi 24" G Series Hot Peel PET Transfer Film - 24" x 328' (60.96 cm x 100 m)
  • Media Transmission: Automatic Tension System (Dancer System)
  • Resolution:
    • 720 x 1200 DPI, 4-pass
    • 360 x 3600 DPI, 6-pass
  • Speed:
    • Optional STANDARD Color Gamut: 160 linear feet, 48 meters/hour. 400+ (8"x10") transfers/hour.
    • Included EXPANDED Color Gamut: 145 linear feet, 40 meters/hour. 300 (8"x10") transfers/hour.
  • Printer Weight: 358 lbs. / 162 kg
  • Dryer Weight: 847 lbs. / 384 kg
  • Electrical Requirements: Combined 220V/30A
  • Dimensions:
    • Printer Dimensions: 35.5" x 78"
    • Shaker/Dryer: 110.5" x 33"
    • Combined Dimensions: 151" x 78"
  • Ink Type: ColDesi DTF OEKO-TEX ECO PASSPORT Certified Pigmented Water Based Textile Ink
  • Ink Capacity: 500 ml Bags
  • Transmission Interface: Ethernet
  • Supported OS: Windows 10 PC (or greater)
  • Included RIP Software: ColDesi's DTF Print Optimizer Software

Optimal Operating Environment:
Place the printer in a clean, dust-free space with a stable, moderate temperature between 60°F and 80°F (15.6°C – 26.7°C) and 50% - 70% humidity to ensure optimal performance.

Delivery & Setup:

Delivered to your receiving area. Uncrating and self-installation are required. The units are on casters for easy mobility, but handling requires 3-4 people. Combined dimensions include pre-heat table and rear dryer assembly, see site readiness document for details.


Software Requirements:
The printer runs on ColDesi’s DTF Print Optimizer Software and requires a dedicated Windows 10 (or newer) PC with 32 GB RAM, 500 GB SSD, Ethernet, and Wi-Fi. Specific hardware specifications are recommended for best results.

Specifications
  • Shaker Dryer
    POW/POWR
  • Ink Delivery System
    5-7 Color Bulk Ink System (SMART Cartridge Ink System)
    Water Based Textile Ink
    500 ml Bottles
    OEKO-TEX ECO PASSPORT-Certified Inks
  • Machine Dimensions
    Printer: 30" x 78" (76.2 x 198.12 cm)
    Dryer: 94.5" x 36" (240.03 x 91.44 cm)
    Combined: 124.5" x 78" (316.23 x 198.12 cm)
  • Maintenance Features
    Auto Supply Ink System
    White Ink Management System
    Anti-Collision System
    Film Print Vacuum System
    In-Line Heater Pre/Post (Post Default)
    Self-Cleaning Function (Automated Wet Capping)
    LCD Touch Screen Control Menu
    Auto Belt Feed with Front/Back Vacuum
    Weighted Powder PAM/Cradle
    Integrated Fume Extractor
    Pre-Heat Table
    Powder Recirculatory System
    Laser Sync Sensor
    Belt Control & Powder Release
  • Media Transmission
    Automatic Tension System (Dancer System) and Film Take Up
  • Operating Conditions
    Recommended Workspace: 196.5"x 150" (499.11 x 381 cm)
    Operating Temperature: 60° - 80°F (15.6 - 26.7°C)
    Operating Humidity: 50% - 70%
  • Operating System Compatibility
    Windows PC w/Quad Core Processor - 32GB RAM and 500GB SSD - Transmission Interface: Ethernet
  • Print Head Technology
    Epson i3200 Print Heads
    Piezoelectric Inkjet
    Variable DOD Using VSD
  • Print Media
    DigitalHeat FX - PET Transfer Film
    24" x 328' (60 cm x 100 m)
  • Print Resolution
    720 x 1200 DPI, 4-Pass, 147.4 LF/hr (44.93 m/h)
    360 x 3600 DPI, 6-Pass, 103.8 LF/hr (31.63 m/h)
  • Training
    Online-Self Paced Training
    One-on-One Training Available
    7 Day a Week Equipment Support
    Nationwide DTF Certified Technicians
  • Voltage
    Combined: 240V/30A
  • Warranty
    2-Year Warranty / 1-Year Print Head Warranty
  • Weight
    Printer: 550 lbs / 245 kg
    Dryer: POW 562 lbs / 255 kg (POWR 635 lbs / 288 kg)
    Printer Shipping Weight: 750 lbs / 341 kg
    Dryer Shipping Weight: 915 lbs / 415 kg
  • What's Included
    Startup Consumables Kit
    Maintenance Kit Print Optimizer RIP Software
  • Configuration
    Standard: CMYK + White
    Fluorescent: CMYK(FM)(FY) + White
    Expanded: CMYKOG + White
  • Heads
    5
  • Paper Size
    22.5in.
